SIDE MOULDING INSTALLATION


  1. INSTALL FRONT DOOR MOULDING OUTSIDE LH (for 5 Door)


    1. Using an infrared light, heat the double-sided adhesive tape remaining on the front door panel.

      Tech Tips

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

    2. Using a piece of cloth, rub the remaining double-sided adhesive tape off the front door panel while it is hot from the infrared light.

      Note

      Installing the front door moulding outside while any double-sided adhesive tape remains on the front door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.

    3. Using a non-residue solvent, clean the attachment surface.

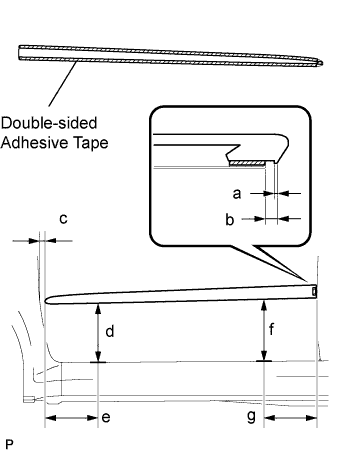

    4. A01384BE01

      Install the front door moulding outside as shown in the illustration.

      Installation Position
      Mark Measurement (along surface)
      a 0.6 mm (0.024 in.)
      b 2.7 mm (0.106 in.)
      c 40.3 mm (1.587 in.)
      d 283.5 mm (11.161 in.)
      e 300.0 mm (11.811 in.)
      f 221.0 mm (8.701 in.)
      g 300.0 mm (11.811 in.)

      Note

      Install the front door moulding outside in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the front door panel and the front door moulding outside to 20 to 30°C (68 to 86°F) and install the front door moulding outside.

    5. Press the front door moulding outside against the vehicle to apply the double-sided adhesive tape.

  2. INSTALL REAR DOOR MOULDING OUTSIDE LH (for 5 Door)


    1. Using an infrared light, heat the double-sided adhesive tape remaining on the rear door panel.

      Tech Tips

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

    2. Using a piece of cloth, rub the remaining double-sided adhesive tape off the rear door panel while it is hot from the infrared light.

      Note

      Installing the rear door moulding outside while any double-sided adhesive tape remains on the rear door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.

    3. Using a non-residue solvent, clean the attachment surface.

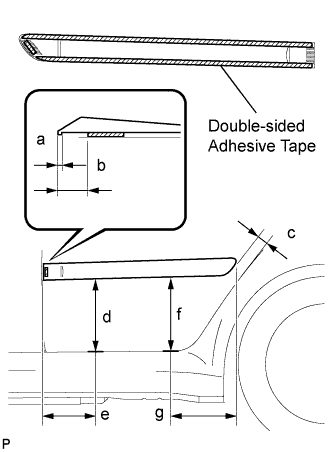

    4. A01370FE01

      Install the rear door moulding outside as shown in the illustration.

      Installation Position
      Mark Measurement (along surface)
      a 0.6 mm (0.024 in.)
      b 8.8 mm (0.346 in.)
      c 75.4 mm (2.969 in.)
      d 227.2 mm (8.945 in.)
      e 150.0 mm (5.906 in.)
      f 275.6 mm (10.850 in.)
      g 150.0 mm (5.906 in.)

      Note

      Install the rear door moulding outside in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the rear door panel and the rear door moulding outside to 20 to 30°C (68 to 86°F) and install the rear door moulding outside.

    5. Press the rear door moulding outside against the vehicle to apply the double-sided adhesive tape.

  3. INSTALL FRONT DOOR MOULDING OUTSIDE LH (for 3 Door)


    1. Using an infrared light, heat the double-sided adhesive tape remaining on the front door panel.

      Tech Tips

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

    2. Using a piece of cloth, rub the remaining double-sided adhesive tape off the front door panel while it is hot from the infrared light.

      Note

      Installing the front door moulding outside while any double-sided adhesive tape remains on the front door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.

    3. Using a non-residue solvent, clean the attachment surface.

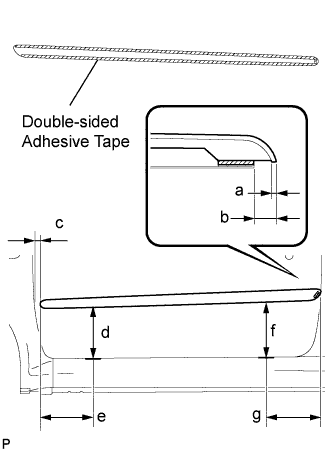

    4. A01360WE02

      Install the front door moulding outside as shown in the illustration.

      Installation Position
      Mark Measurement (along surface)
      a 1.3 mm (0.051 in.)
      b 6.8 mm (0.268 in.)
      c 8.7 mm (0.343 in.)
      d 219.7 mm (8.650 in.)
      e 300.0 mm (11.811 in.)
      f 232.1 mm (9.138 in.)
      g 300.0 mm (11.811 in.)

      Note

      Install the front door moulding outside in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the front door panel and the front door moulding outside to 20 to 30°C (68 to 86°F) and install the front door moulding outside.

    5. Press the front door moulding outside against the vehicle to apply the double-sided adhesive tape.
