ROOF DRIP SIDE FINISH MOULDING REMOVAL

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. REMOVE ROOF DRIP SIDE FINISH MOULDING

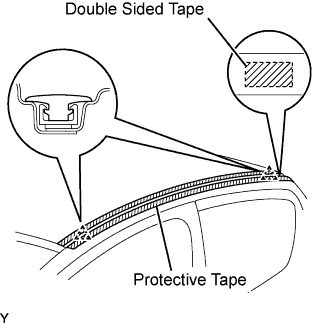

    A0138XIE01

    1. Apply protective tape to the outer circumference of the roof drip side finish moulding, as shown in the illustration.

    2. Remove the double sided tape.

    3. Disengage the 2 clips and remove the roof drip side finish moulding.

      Note


      • Do not remove the clips from the vehicle body.

      • If the clips have been accidentally damaged or removed, replace them.
