FRONT PILLAR UPPER COVER REMOVAL

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. REMOVE FRONT PILLAR UPPER COVER

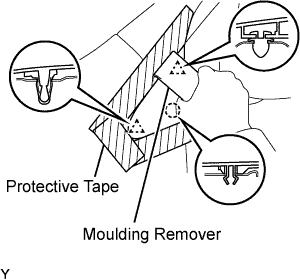

    A0135WWE01

    1. Apply protective tape to the outer circumference of the front pillar upper cover, as shown in the illustration.

    2. Using a moulding remover, disengage the 2 clips and claw, and remove the front pillar upper cover.
