FRONT PILLAR UPPER COVER INSTALLATION

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. INSTALL FRONT PILLAR UPPER COVER

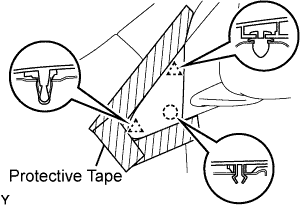

    A0138HPE01

    1. Engage the claw and 2 clips, and install the front pillar upper cover.

    2. Remove the protective tape.
