WASHER MOTOR REMOVAL


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE FRONT BUMPER COVER

    A0138CFE01

    1. Apply protective tape to the outer circumference of the front bumper cover, as shown in the illustration.

    2. Using a clip remover, remove the clip.

    3. Remove the 3 bolts, 5 screws and 2 clips.

    4. A01360O

      Disengage the 13 claws and remove the front bumper cover.

    5. A0136YZ

      Remove the 2 clips.

  3. REMOVE HEADLIGHT UNIT RH

    Tech Tips

    Use the same procedure as for the LH side Click here.

  4. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

    A0138XV

    1. Remove the 2 bolts.

    2. Disconnect the 2 connectors.

    3. Disconnect the 2 washer hoses.

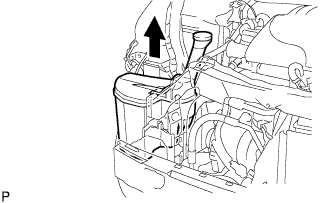

    4. A0136LU

      Remove the windshield washer jar assembly.

    5. A01378V

      Remove the windshield washer motor and pump assembly from the windshield washer jar assembly.
