РЫЧАГ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ ПОВТОРНАЯ СБОРКА


  1. INSTALL SHIFT LEVER HARNESS CONNECTOR BRACKET


    1. Install the shift lever harness connector bracket to the shift lock control unit with the screw.

  2. INSTALL POSITION INDICATOR SLIDE COVER


    1. Install the position indicator slide cover No. 2 to the position indicator slide cover.

    2. Install the position indicator slide cover to the shift lock control unit.

  3. INSTALL SHIFT LEVER SLIDE COVER GUIDE


    1. Install the shift lever slide cover guide to the shift lock control unit.

  4. INSTALL POSITION INDICATOR LIGHT BULB


    1. Install the position indicator light cap and indicator light bulb to the indicator light wire.

  5. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

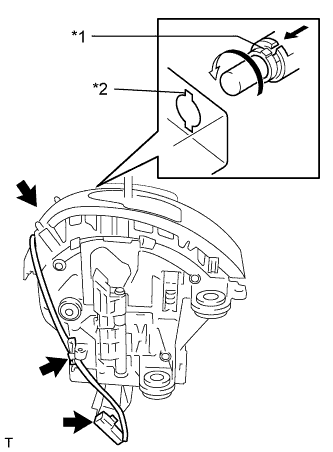

    1. A01BCT0E02
      Text in Illustration
      *1 Key
      *1 Groove

      Insert the indicator light wire into the shift lock control unit while aligning the groove on the union with the indicator light guide key.

    2. Install the indicator light guide by turning it clockwise until it securely locks.

    3. Install the indicator lamp wire to the 2 clamps on the shift lock control union.
