РЫЧАГ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ РАЗБОРКА

REMOVE POSITION INDICATOR LIGHT BULB

1.

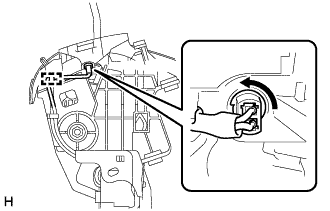

   Rotate the wire socket counterclockwise to align the wire socket with the key part of the lower position indicator housing and remove the wire socket.

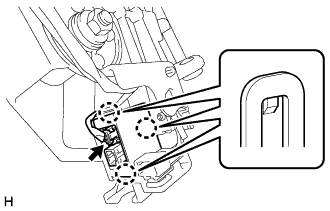

2. Detach the guide and disconnect the wire from the shift lock control unit assembly.

3.

   Remove the position indicator light cap and position indicator light bulb.

REMOVE LOWER POSITION INDICATOR HOUSING

1.

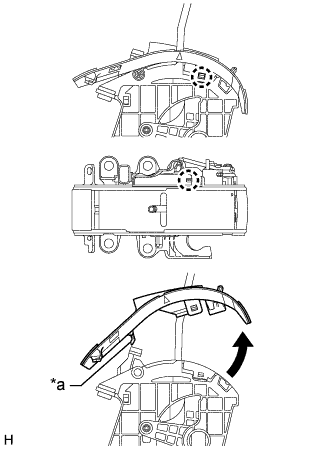

   Detach the 2 claws and remove the lower position indicator housing from the shift lock control unit assembly.

   Table 1. Text in Illustration

   *a

   Hook

   Note:

   Raise up the side with the claws to prevent the hook from becoming damaged.

REMOVE POSITION INDICATOR SLIDE COVER

1.

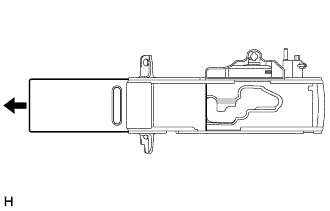

   Remove the position indicator slide cover together with No. 2 position indicator slide cover from the lower position indicator housing.

2.

   Remove the No. 2 position indicator slide cover from the position indicator slide cover.

REMOVE SHIFT LOCK CONTROL ECU

1.

   Disconnect the shift lock solenoid connector from the shift lock control ECU.

2. Detach the 3 claws and remove the shift lock control ECU from the shift lock control unit assembly.
