STEERING SYSTEM ON-VEHICLE INSPECTION

Click here
Click here
  1. Click here

    INSPECT STEERING WHEEL FREE PLAY


    1. Stop the vehicle and position the front wheels straight ahead.

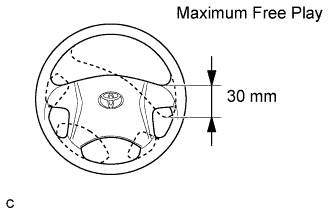

    2. A017G44E01

      Gently turn the steering wheel right and left, and check the steering wheel free play.

      Maximum free play
      30 mm (1.18 in.)
      Tip:

      If the free play exceeds the maximum, check the steering system (Click here).
