AIR OUTLET REGISTER INSTALLATION


  1. INSTALL AIR OUTLET REGISTER ASSEMBLY

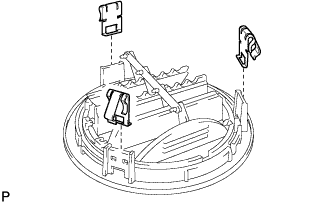

    1. A01BC4W

      Install 3 new clips to a new air outlet resistor.

      Note

      Be sure to install the supplied clips.

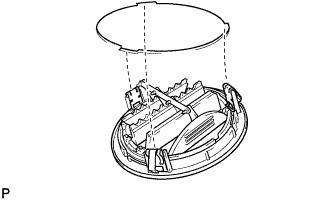

    2. A01BA6M

      Align the clips on the air outlet resistor with the recessed parts on the installation portion to install them.
