AIR OUTLET REGISTER REMOVAL


  1. REMOVE AIR OUTLET REGISTER ASSEMBLY

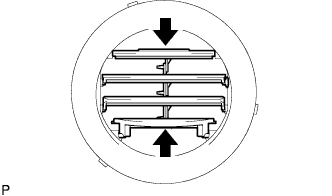

    1. A01BE5Q

      Using pliers, break the portions of the air outlet resistor, indicated by the arrows in the illustration.

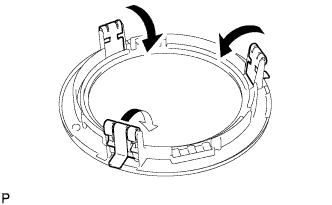

    2. A01BH3P

      Fold down the 3 clips in the direction shown in the illustration to break them. Remove the air outlet resistor.
