WHEEL ALIGNMENT ADJUSTMENT
-
INSPECT TIRES
-
MEASURE VEHICLE HEIGHT
-
Bounce the vehicle at the corners up and down to stabilize the suspension and inspect vehicle height.
Vehicle height Australia Model A
mm (in. )
B
mm (in. )
TRH201R-RBMDKQ 267
(10.51)
273
(10.75)
TRH201R-RBPDKQ 267
(10.51)
273
(10.75)
TRH221R-MBMDKQ 272
(10.71)
274
(10.79)
THR221R-MBPDKQ 272
(10.71)
273
(10.75)
TRH223R-LEMDKQ 257
(10.12)
264
(10.39)
TRH223R-LEPDKQ 257
(10.12)
264
(10.39)
KDH200R-RBMDYQ 264
(10.39)
271
(10.67)
KDH200R-RBPDYQ 263
(10.35)
271
(10.67)
KDH220R-MBMDYQ 270
(10.63)
273
(10.75)
KDH220R-MBPDYQ 270
(10.63)
272
(10.71)
KDH222R-LEMDYQ 256
(10.08)
264
(10.39)
KDH222R-LEPDYQ 255
(10.04)
263
(10.35)
South Africa Model A
mm (in. )
B
mm (in. )
TRH201R-RBMDKQ 267
(10.51)
273
(10.75)
TRH221R-MBMDKQ 272
(10.71)
274
(10.79)
TRH223R-LEMDKQ 257
(10.12)
264
(10.39)
KDH200R-RBMDYQ 263
(10.35)
270
(10.63)
KDH220R-MBMDYQ 270
(10.63)
272
(10.71)
KDH222R-LEMDYQ 255
(10.04)
263
(10.35)
New Zealand Model A
mm (in. )
B
mm (in. )
TRH223R-LEMDKQ 255
(10.04)
265
(10.43)
KDH222R-LEMDYQ 254
(10.00)
264
(10.39)
KDH222R-LEPDYQ 253
(9.96)
263
(10.35)
TRH201R-SRMDK 263
(10.35)
271
(10.67)
TRH201R-SRPDK 263
(10.35)
271
(10.67)
KDH200R-SRMDY 260
(10.24)
269
(10.59)
KDH200R-SRPDY 260
(10.24)
269
(10.59)
KDH220R-LFMDY 269
(10.59)
272
(10.71)
KDH220R-LFPDY 269
(10.59)
272
(10.71)
Thailand Model A
mm (in. )
B
mm (in. )
KDH200R-RBMDY 264
(10.39)
271
(10.67)
TRH213R-KDPNK 246
(9.69)
261
(10.28)
KDH202R-RDMDY 261
(10.28)
275
(10.83)
KDH202R-RDMNY 254
(10.00)
273
(10.75)
KDH222R-LEMDY 266
(10.47)
269
(10.59)
Singapore Model A
mm (in. )
B
mm (in. )
KDH200R-RBPDY 259
(10.20)
270
(10.63)
KDH200R-SBMDY 259
(10.20)
269
(10.59)
KDH202R-REMDY 257
(10.12)
273
(10.75)
China Model A
mm (in. )
B
mm (in. )
TRH213L-JDMNK 256
(10.08)
267
(10.51)
TRH223L-LEMNK 257
(10.12)
264
(10.39)
TRH223L-LEPNK 257
(10.12)
264
(10.39)
the Philippines Model A
mm (in. )
B
mm (in. )
KDH202L-REMDY 262
(10.31)
274
(10.79)
KDH212L-JDMNY 259
(10.20)
268
(10.55)
GCC countries (*1) Model A
mm (in. )
B
mm (in. )
TRH201L-SBMDKV 267
(10.51)
271
(10.67)
TRH201L-SRMDKV 263
(10.35)
271
(10.67)
TRH221L-MBMDKV 272
(10.71)
273
(10.75)
TRH203L-REMDKV 264
(10.39)
275
(10.83)
TRH223L-LEMDKV 267
(10.51)
273
(10.75)
TRH223L-LEMNKV 267
(10.51)
269
(10.59)
KDH200L-SBMDYV 263
(10.35)
270
(10.63)
KDH200L-SRMDYV 260
(10.24)
270
(10.63)
KDH202L-REMDYV 261
(10.28)
274
(10.79)
KDH222L-LEMDYV 266
(10.47)
272
(10.71)
KDH222L-LEMNYV 265
(10.43)
268
(10.55)
(*1) Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar and Kuwait Russia Model A
mm (in. )
B
mm (in. )
TRH223L-LEMNKX 256
(10.08)
265
(10.43)
Hong Kong Model A
mm (in. )
B
mm (in. )
TRH201R-SSMDK 262
(10.31)
271
(10.67)
TRH201R-SSPDK 262
(10.31)
270
(10.63)
KDH200R-SSMDY 260
(10.24)
270
(10.63)
KDH200R-SSPDY 260
(10.24)
270
(10.63)
KDH200R-SSPNY 260
(10.24)
269
(10.59)
South and Central America Model A
mm (in. )
B
mm (in. )
TRH201L-SBMDK 267
(10.51)
274
(10.79)
TRH203L-REMDK 263
(10.35)
274
(10.79)
TRH203L-RDMDK 265
(10.43)
277
(10.91)
TRH223L-LEMDK 267
(10.51)
272
(10.71)
LH200L-RBMDE 264
(10.39)
272
(10.71)
LH202L-REMDE 262
(10.31)
275
(10.83)
LH202L-RDMDE 262
(10.31)
276
(10.87)
LH222L-LEMDE 266
(10.47)
273
(10.75)
Malaysia Model A
mm (in. )
B
mm (in. )
KDH200R-RBMDY 264
(10.39)
271
(10.67)
TRH203R-EDMDK 264
(10.39)
275
(10.83)
KDH202R-EDMDY 262
(10.31)
274
(10.79)
Algeria Model A
mm (in. )
B
mm (in. )
LH200L-RBMDE 264
(10.39)
272
(10.71)
TRH203L-REMDK 263
(10.35)
274
(10.79)
LH202L-REMDE 261
(10.28)
274
(10.79)
Vietnam Model A
mm (in. )
B
mm (in. )
TRH213L-JDMNK 255
(10.04)
267
(10.51)
TRH213L-JEMDK 265
(10.43)
266
(10.47)
KDH212L-JEMDY 262
(10.31)
265
(10.43)
Tunisia Model A
mm (in. )
B
mm (in. )
LH212L-JDMDE 253
(9.96)
274
(10.79)
Others Model A
mm (in. )
B
mm (in. )
TRH201R-RBMDK 267
(10.51)
272
(10.71)
TRH201L-SBMDK 267
(10.51)
274
(10.79)
TRH221L-MBMDK 272
(10.71)
272
(10.71)
KDH200R-RBMDY 264
(10.39)
271
(10.67)
KDH200R-RBPDY 263
(10.35)
271
(10.67)
KDH200R-SBMDY 263
(10.35)
269
(10.59)
KDH200L-RBMDY 264
(10.39)
271
(10.67)
KDH200L-SBMDY 263
(10.35)
269
(10.59)
LH200R-RBMDE 264
(10.39)
272
(10.71)
LH200R-SBMDE 264
(10.39)
270
(10.63)
LH200L-RBMDE 264
(10.39)
272
(10.71)
TRH203R-REMDK 264
(10.39)
274
(10.79)
TRH203L-REMDK 263
(10.35)
274
(10.79)
TRH203L-RDMDK 264
(10.39)
277
(10.91)
TRH223R-LEMDK 267
(10.51)
272
(10.71)
TRH223L-LEMDK 267
(10.51)
272
(10.71)
TRH223L-LEMNK 266
(10.47)
269
(10.59)
KDH202R-REMDY 263
(10.35)
274
(10.79)
KDH202L-REMDY 263
(10.35)
274
(10.79)
KDH202L-RDMDY 262
(10.31)
275
(10.83)
KDH202L-RDPDY 262
(10.31)
275
(10.83)
KDH222L-LEMDY 265
(10.43)
271
(10.67)
LH202R-REMDE 262
(10.31)
275
(10.83)
LH202L-REMDE 262
(10.31)
275
(10.83)
LH202L-RDMDE 262
(10.31)
276
(10.87)
LH222R-LEMDE 266
(10.47)
273
(10.75)
LH222L-LEMDE 266
(10.47)
273
(10.75)
Measuring points A Ground clearance of front suspension No.1 adjust cam bolt head B Ground clearance of front center position of rear leaf spring front installation bolt head Note
Before inspecting the wheel alignment, adjust the vehicle height to the specified valve.
-
-
INSPECT TOE-IN
-
Bounce the vehicle at the corners up and down to stabilize the suspension and inspect the vehicle height.
-
Inspect toe-in.

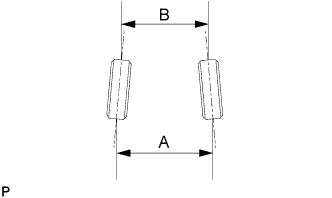

Toe-in A-B Toe-in
(total)
2 +- 2 mm (0.08 +- 0.08 in.) Tech Tips

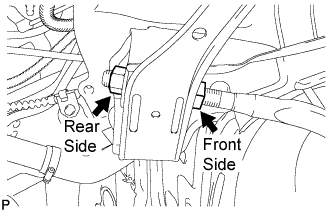

If toe-in is not within the specified range, adjust it at the rack ends.
-
-
ADJUST TOE-IN
-
Measure the thread lengths of the right and left rack ends.
Standard Difference in thread length of 3.0 mm (0.12 in.) or less -
Remove the rack boot set clips.
-
Loosen the tie rod end lock nuts.
-
Adjust the rack ends if the difference in thread length between the right and left rack ends is not within the specified range.
-
Extend the longer rack end if the measured toe-in deviates toward the outer-side.
-
Shorten the shorter rack end if the measured toe-in deviates toward the inner-side.
-
-
Turn the right and left rack ends by an equal amount to adjust toe-in.
Tech Tips
Try to adjust toe-in to the center of the specified range.
-
Make sure that the lengths of the right and left rack ends are the same.
Standard 2 +- 1 mm (0.08 +- 0.04 in.) -
Tighten the tie rod end lock nuts.
- Torque:
- 74 N*m { 755 kgf*cm, 55 ft.*lbf }
Note
Temporarily tighten the lock nut while holding the hexagonal part of the steering rack end so that the lock nut and the steering rack end do not turn together. Hold the width across flat of the tie rod end and tighten the lock nut.
-
Place the boots on the seats and install the clips.
Tech Tips
Make sure that the boots are not twisted.
-
-
INSPECT WHEEL ANGLE
-

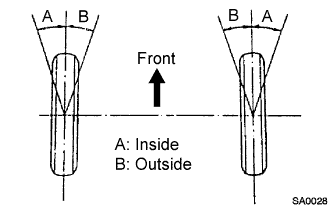

Turn the steering wheel fully left and right and measure the turning angle.
Wheel turning angle Wheel angle Inside wheel 38°00' + 1°30', -2°30'
(38.00° + 1.5°, -2.5°)
Outside wheel:
Reference
33°00' + 1°30', -2°30'
(33.00° + 1.5°, -2.5°)
If the right and left inside wheel angles differ from the specified range, check the right and left rack end lengths.
-
-
INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
-
Put the front wheel on the center of the alignment tester.
-
Remove the center ornament.
-

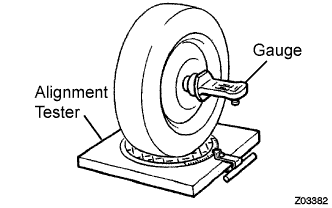

Install the camber-caster-steering axis inclination gauge at the center of the axle hub or drive shaft.
-
Inspect the camber, caster and steering axis inclination.
Camber and steering axis inclination Camber -0°18' +- 45'
(-0.30° +- 0.75°)
Right-left error 30' (0.5°) or less Steering axis inclination 12°36' +- 45'
(12.60° +- 0.75°)
Right-left error 30' (0.5°) or less Caster Australia Model Caster TRH201R-RBMDKQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201R-RBPDKQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH221R-MBMDKQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less THR221R-MBPDKQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223R-LEMDKQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223R-LEPDKQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-RBMDYQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-RBPDYQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH220R-MBMDYQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH220R-MBPDYQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEPDYQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less South Africa Model Caster TRH201R-RBMDKQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH221R-MBMDKQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223R-LEMDKQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-RBMDYQ 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH220R-MBMDYQ 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less New Zealand Model Caster TRH223R-LEMDKQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEPDYQ 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201R-SRMDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201R-SRPDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SRMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SRPDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH220R-LFMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH220R-LFPDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less Thailand Model Caster KDH200R-RBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH213R-KDPNK 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202R-RDMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202R-RDMNY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222R-LEMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less Singapore Model Caster KDH200R-RBPDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SBMDY 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202R-REMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less China Model Caster TRH213L-JDMNK 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMNK 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEPNK 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less the Philippines Model Caster KDH202L-REMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH212L-JDMNY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less GCC countries (*1) Model Caster TRH201L-SBMDKV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201L-SRMDKV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH221L-MBMDKV 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-REMDKV 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMDKV 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMNKV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200L-SBMDYV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200L-SRMDYV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202L-REMDYV 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222L-LEMDYV 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222L-LEMNYV 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less (*1) Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar and Kuwait Russia Model Caster TRH223L-LEMNKX 2°36' +- 45'
(2.60° +- 0.75°)
Right-left error 30' (0.5°) or less Hong Kong Model Caster TRH201R-SSMDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201R-SSPDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SSMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SSPDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SSPNY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less South and Central America Model Caster TRH201L-SBMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-RDMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH200L-RBMDE 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH202L-RDMDE 2°12' +- 45'
(2.20° +- 0.75°)
Right-left error 30' (0.5°) or less LH222L-LEMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less Malaysia Model Caster KDH200R-RBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203R-EDMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202R-EDMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less Algeria Model Caster LH200L-RBMDE 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less Vietnam Model Caster TRH213L-JDMNK 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less TRH213L-JEMDK 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less KDH212L-JEMDY 2°30' +- 45'
(2.50° +- 0.75°)
Right-left error 30' (0.5°) or less Tunisia Model Caster LH212L-JDMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less Others Model Caster TRH201R-RBMDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH201L-SBMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH221L-MBMDK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-RBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-RBPDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200R-SBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200L-RBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH200L-SBMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less LH200R-RBMDE 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less LH200R-SBMDE 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less LH200L-RBMDE 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203R-REMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH203L-RDMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223R-LEMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMDK 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less TRH223L-LEMNK 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202R-REMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202L-REMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202L-RDMDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH202L-RDPDY 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less KDH222L-LEMDY 2°24' +- 45'
(2.40° +- 0.75°)
Right-left error 30' (0.5°) or less LH202R-REMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH202L-RDMDE 2°12' +- 45'
(2.20° +- 0.75°)
Right-left error 30' (0.5°) or less LH222R-LEMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less LH222L-LEMDE 2°18' +- 45'
(2.30° +- 0.75°)
Right-left error 30' (0.5°) or less Note
-
Inspect while the vehicle is empty.
-
The maximum tolerance of right and left difference for the camber and caster is 30' or less.
-
-
Remove the camber-caster-steering axis inclination gauge.
-
Install the center ornament.
If the caster and steering axis inclination are not within the specified values after the camber has been correctly adjusted, recheck the suspension parts for damage and/or wear.
-
-
ADJUST CAMBER
-
Loosen the nut of the front suspension No.2 camber adjust cam.
-
Turn the front suspension No.1 camber adjust cam to adjust the camber.
Camber -0°18' +- 30' (-0.30° +- 0.5°) Note
-
Inspect while the vehicle is empty.
-
The maximum tolerance of right and left difference for the camber and caster is 30' or less.
-
Be sure to inspect toe-in after the camber has been adjusted.
Tech Tips
If the camber adjust cam is turned 1 notch to the left when viewing from the front of the vehicle (the bolt moves approximately 1 mm to the outside), the camber will change by approximately -0°13'.
-
-
Tighten the camber adjust cam nut.
- Torque:
- 170 N*m { 1,730 kgf*cm, 125 ft.*lbf }
-
-
ADJUST CASTER
-
Loosen the lock nut of the strut bar (rear side).
-
Turn the adjust nut of the strut bar (front side) to adjust caster.
Caster Australia Model Caster TRH201R-RBMDKQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201R-RBPDKQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH221R-MBMDKQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less THR221R-MBPDKQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223R-LEMDKQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223R-LEPDKQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-RBMDYQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-RBPDYQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH220R-MBMDYQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH220R-MBPDYQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEPDYQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less South Africa Model Caster TRH201R-RBMDKQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH221R-MBMDKQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223R-LEMDKQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-RBMDYQ 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH220R-MBMDYQ 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less New Zealand Model Caster TRH223R-LEMDKQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEMDYQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEPDYQ 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201R-SRMDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201R-SRPDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SRMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SRPDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH220R-LFMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH220R-LFPDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less Thailand Model Caster KDH200R-RBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH213R-KDPNK 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202R-RDMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202R-RDMNY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222R-LEMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less Singapore Model Caster KDH200R-RBPDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SBMDY 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202R-REMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less China Model Caster TRH213L-JDMNK 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMNK 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEPNK 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less the Philippines Model Caster KDH202L-REMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH212L-JDMNY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less GCC countries (*1) Model Caster TRH201L-SBMDKV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201L-SRMDKV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH221L-MBMDKV 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-REMDKV 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMDKV 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMNKV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200L-SBMDYV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200L-SRMDYV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202L-REMDYV 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222L-LEMDYV 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222L-LEMNYV 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less (*1) Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar and Kuwait Russia Model Caster TRH223L-LEMNKX 2°36' +- 30'
(2.60° +- 0.5°)
Right-left error 30' (0.5°) or less Hong Kong Model Caster TRH201R-SSMDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201R-SSPDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SSMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SSPDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SSPNY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less South and Central America Model Caster TRH201L-SBMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-RDMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH200L-RBMDE 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH202L-RDMDE 2°12' +- 30'
(2.20° +- 0.5°)
Right-left error 30' (0.5°) or less LH222L-LEMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less Malaysia Model Caster KDH200R-RBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203R-EDMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202R-EDMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less Algeria Model Caster LH200L-RBMDE 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less Vietnam Model Caster TRH213L-JDMNK 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less TRH213L-JEMDK 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less KDH212L-JEMDY 2°30' +- 30'
(2.50° +- 0.5°)
Right-left error 30' (0.5°) or less Tunisia Model Caster LH212L-JDMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less Others Model Caster TRH201R-RBMDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH201L-SBMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH221L-MBMDK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-RBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-RBPDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200R-SBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200L-RBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH200L-SBMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less LH200R-RBMDE 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less LH200R-SBMDE 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less LH200L-RBMDE 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203R-REMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-REMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH203L-RDMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223R-LEMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMDK 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less TRH223L-LEMNK 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202R-REMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202L-REMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202L-RDMDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH202L-RDPDY 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less KDH222L-LEMDY 2°24' +- 30'
(2.40° +- 0.5°)
Right-left error 30' (0.5°) or less LH202R-REMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH202L-REMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH202L-RDMDE 2°12' +- 30'
(2.20° +- 0.5°)
Right-left error 30' (0.5°) or less LH222R-LEMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less LH222L-LEMDE 2°18' +- 30'
(2.30° +- 0.5°)
Right-left error 30' (0.5°) or less Note
-
Inspect while the vehicle is empty.
-
The maximum tolerance of right and left difference for the caster is 30' or less.
-
Be sure to inspect toe-in after the caster has been adjusted.
Tech Tips
If the adjust nut of the strut bar (front side) is moved approximately 1 mm (0.04 in.), the caster will change by approximately 0° 08'.
-
-
Tighten the lock nut of the strut bar (rear side).
- Torque:
- 138 N*m { 1,410 kgf*cm, 102 ft.*lbf }
-
