REAR SHOCK ABSORBER REMOVAL


  1. REMOVE REAR SHOCK ABSORBER ASSEMBLY

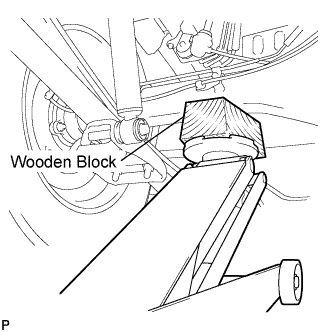

    1. A01BEWJE01

      Support the rear axle housing assembly with a jack using a wooden block to avoid damage.

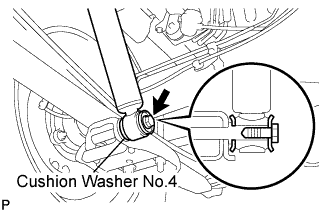

    2. A01BG17E01

      Remove the bolt and separate the rear shock absorber assembly.

    3. Remove the cushion washer No.4.

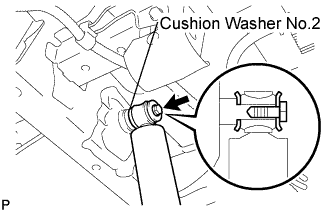

    4. A01BHFTE01

      Remove the bolt and rear shock absorber assembly.

    5. Remove the cushion washer No.2.

    6. A01BFHW

      Remove the 2 rear shock absorber bushings from the rear shock absorber assembly.
