FRONT LOWER SUSPENSION ARM DISASSEMBLY


  1. REMOVE FRONT NO.1 SPRING BUMPER


    1. A01BAL5E01

      Remove the nut and front No.1 spring bumper.

  2. REMOVE FRONT NO.1 LOWER ARM BUSHING

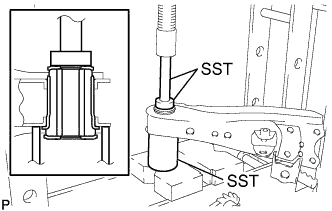

    1. A01BGQXE01

      Using SST and a press, remove front No.1 lower arm bushing from the front suspension lower arm.

      SST
      09612-30012
      09950-60010   ( 09951-00400 )
      09950-70010   ( 09951-07100 )
      09726-27012   ( 09726-01031 )
