REAR AXLE SHAFT REASSEMBLY


  1. INSTALL REAR AXLE BEARING CASE


    1. Install the rear axle bearing case to the rear brake backing plate.

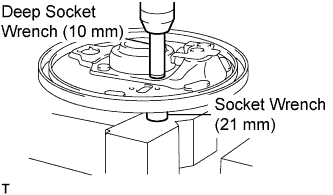

    2. A01BHOSE01

      Using a deep socket wrench (10 mm), socket wrench (21 mm) and press, install the 4 rear brake backing plate No.1 bolts.

  2. INSTALL REAR AXLE SHAFT BEARING


    1. A01BC2VE01

      Using SST and a press, install a new rear axle shaft bearing.

      SST
      09950-60020   ( 09951-00910 )

  3. INSTALL REAR AXLE SHAFT OUTER OIL SEAL

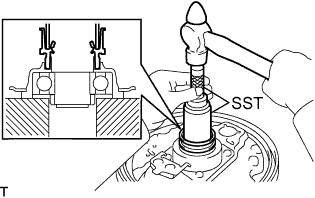

    1. A01BBGCE01

      Using SST and a hammer, install a new rear axle shaft outer oil seal to the rear axle shaft bearing case.

      SST
      09223-22010
      09612-30012

    2. Apply MP grease to the oil seal lip.

  4. INSTALL BRAKE DRUM OIL DEFLECTOR


    1. A01BGKYE01

      Aligning the notches, install the brake drum oil deflector, brake drum oil deflector gasket and rear axle hub bolts.

    2. Hold the rear axle shaft in a vise between aluminium plates.

      Note

      Do not overtighten the vise.

    3. A01BH0DE01

      Install a washer and nut to the rear axle hub bolt as shown in the illustration.

    4. Install the rear axle hub bolt by tightening the nut.

  5. INSTALL REAR AXLE SHAFT


    1. Install the rear axle shaft sub-assembly to the rear axle shaft bearing.

    2. Install the bearing retainer inner to the rear axle shaft bearing.

      Note

      Be sure to install the bearing retainer inner in the correct direction.

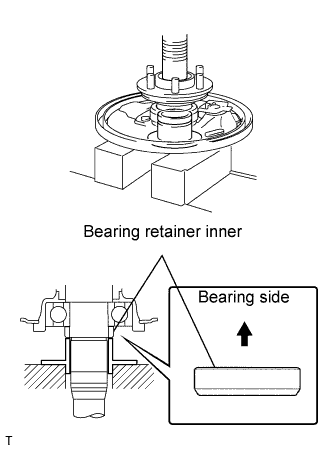

    3. A01BEBTE01

      Using SST and a press, install the rear axle shaft sub-assembly to the rear axle shaft bearing.

      SST
      09316-60011   ( 09316-00051 )

  6. INSTALL REAR AXLE SHAFT SNAP RING

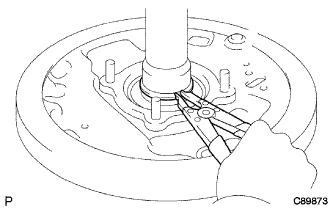

    1. A01BH3V

      Using a snap ring expander, install the new rear axle shaft snap ring.

  7. INSTALL SKID CONTROL ROTOR REAR (w/ ABS)

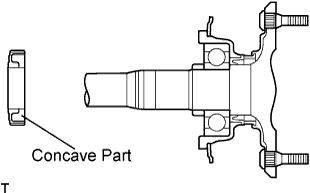

    1. A01BCO0E01

      Install a new rear skid control rotor to the rear axle shaft sub-assembly, as shown in the illustration.

      Note


      • Be sure to install the skid control rotor rear in the correct direction.

      • Be careful not to damage the skid control rotor rear.

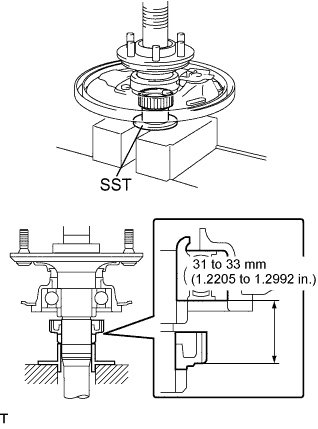

    2. A01BHKZE01

      Using SST and a press, install the skid control rotor rear and bearing retainer inner.

      SST
      09316-60011   ( 09316-00051 )
      Standard
      31 to 33 mm (1.2205 to 1.2992 in.)

      Note

      Be sure to install the bearing retainer inner in the correct direction.
