FRONT UPPER SUSPENSION ARM INSPECTION


  1. INSPECT FRONT UPPER SUSPENSION ARM


    1. A01BBID

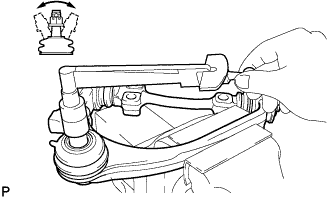

      As shown in the illustration, flip the ball joint stud back and forth 5 times before installing the nut.

    2. Using a torque wrench, turn the nut continuously at a rate of 3 to 5 seconds per turn and take the torque reading on the 5th turn.

      Standard
      Turn the nut smoothly without any play.

      If the value is not within the specified range, replace the front suspension upper arm with a new one.

    3. Check the dust boots for cracks or grease leakage.

      If the value is not within the specified range, replace the front suspension upper arm with a new one.
