OUTER MIRROR COVER (for RH Side) REMOVAL


  1. REMOVE FRONT VALANCE PANEL RH (RHD STEERING POSITION TYPE)


    1. A01KGJQ

      Using a screwdriver, remove the front valance panel LH.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE FRONT VALANCE PANEL LH (LHD STEERING POSITION TYPE)


    1. A01KGJQ

      Using a screwdriver, remove the front valance panel LH.

      Tech Tips

      Tape the screwdriver tip before use.

  3. REMOVE FRONT WIPER ARM HEAD CAP

  4. REMOVE FR WIPER ARM RH (RHD STEERING POSITION TYPE)


    1. A01KH5N

      Remove the nut and FR wiper arm RH.

  5. REMOVE FR WIPER ARM LH (LHD STEERING POSITION TYPE)


    1. A01KGY3

      Remove the nut and FR wiper arm LH.

  6. REMOVE OUTER MIRROR GROMMET

  7. REMOVE OUTER MIRROR BEZEL

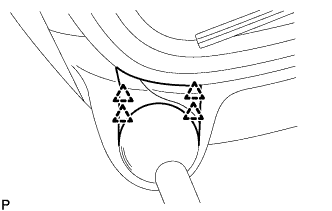

    1. A01KEVL

      Remove the outer mirror bezel.

  8. REMOVE OUTER MIRROR COVER RH

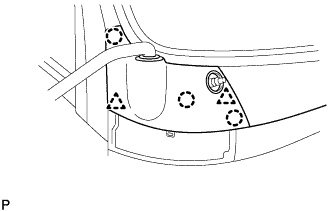

    1. A01KF0F

      Disengage the meshing of clips to remove the outer mirror cover RH.
