HEADLIGHT ASSEMBLY DISASSEMBLY


  1. REMOVE HEADLAMP SOCKET COVER

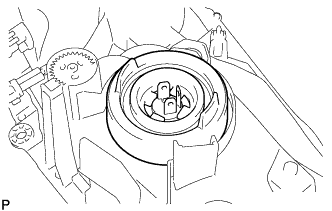

    1. A01KEPH

      Remove the headlamp socket cover from the headlamp unit LH.

  2. REMOVE HEADLAMP, NO.1 BULB

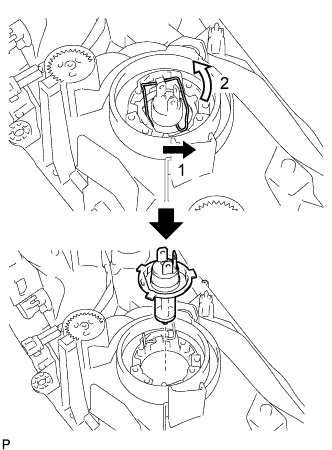

    1. A01KHO0E01

      Unlock the set spring and remove the headlamp No.1 bulb as shown in the illustration.

  3. REMOVE FRONT TURN SIGNAL LAMP SOCKET

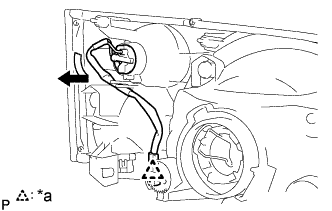

    1. A01KH17E01
      Text in Illustration
      *a Clamp

      Disengage the clamp.

    2. Remove the front turn signal lamp socket along with the front turn signal lamp.

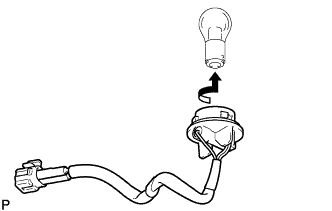

    3. A01KEMY

      Remove the front turn signal lamp socket from the front turn signal lamp bulb.

  4. REMOVE FRONT TURN SIGNAL LAMP BULB

  5. REMOVE CLEARANCE LAMP SOCKET & WIRE

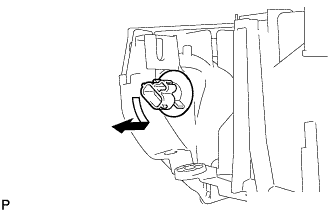

    1. A01KEVC

      Remove the clearance lamp socket & wire along with the clearance lamp bulb as shown in the illustration.

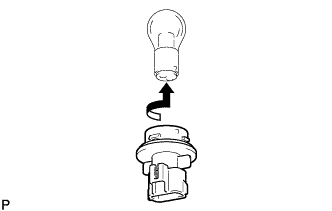

    2. A01KEP4

      Remove the clearance lamp socket & wire from the clearance lamp bulb.

  6. REMOVE CLEARANCE LAMP BULB

  7. REMOVE HEADLAMP UNIT ASSEMBLY LH
