AIRBAG ECU INSTALLATION

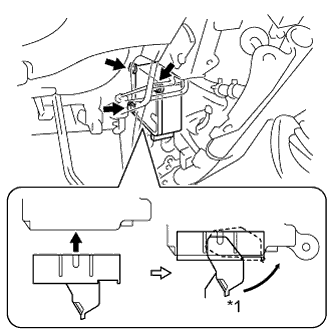

  1. INSTALL AIRBAG ECU ASSEMBLY

    A01KIE0E02
    Text in Illustration
    *1 Lock Lever

    1. Turn the ignition switch off.

    2. Check that the cable has been disconnected from the negative (-) battery terminal.

      Note

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Install the airbag ECU assembly with the 3 bolts.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

      Note


      • If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the assembly with a new one.

      • When installing the airbag ECU assembly, ensure that the SRS wiring does not interfere with or is not pinched between other parts.

      • When the ignition switch is first turned on (IG) after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.

    4. Connect the ECU connector and lock it securely.

      Note

      When connecting the airbag connector, take care not to damage the airbag wire harness.

    5. Check that the waterproof sheet is properly set.

    6. Check that none of the installation parts of the airbag ECU assembly are loose.

  2. INSTALL AIRBAG SENSOR COVER

    A01KF8LE02
    Text in Illustration
    *a Claw

    1. Attach the 2 claws, and then attach the airbag sensor cover to the pedal bracket.

  3. INSTALL LOWER STEERING COLUMN TUBE ASSEMBLY

    A01KFW3

    1. Install the lower steering column tube assembly with the 2 bolts and 2 nuts.

      Torque:
      12 N*m  { 122 kgf*cm, 9 ft.*lbf, for bolts }
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf, for nuts }

  4. INSTALL NO.1 AIR DUCT

    A01KEYIE02
    Text in Illustration
    *a Clip

    1. Install the No. 1 air duct with the 2 clips.

  5. INSTALL STEERING COLUMN ASSEMBLY

    A01KFMJ

    1. Install the steering column assembly with the 4 bolts.

      Torque:
      11.5 N*m  { 117 kgf*cm, 9 ft.*lbf }

  6. INSTALL LOWER STEERING COLUMN TUBE

    A01KHNP

    1. Install the lower steering column tube with the 4 bolts.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

    2. Return the floor carpet to its original position.

  7. INSTALL LOWER STEERING COLUMN COVER


    1. Install the steering column cover LWR with the clip and 2 screws.

  8. INSTALL UPPER STEERING COLUMN COVER


    1. Install the steering column cover UPR with the 2 screws.

  9. INSTALL FRONT DOOR SCUFF PLATE RH

  10. INSTALL FRONT DOOR SCUFF PLATE LH

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  12. PERFORM DIAGNOSTIC SYSTEM CHECK


    1. Perform a diagnostic system check Click here.

  13. INSPECT SRS WARNING LIGHT


    1. Inspect the SRS warning light Click here.
