FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION


  1. INSPECT FRONT SEAT BELT

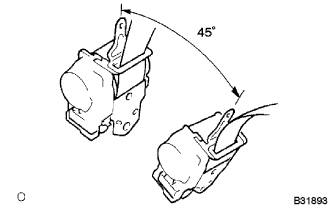

    1. A01KG9T

      Make sure tat the bolt can be pulled out at 15° or less of tilt.

    2. Make sure that the belt can not be pulled out at over 45° of tilt.

  2. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH


    1. Install the front seat outer belt assembly outer RH with the 2 bolts.

      Torque:
      Upper bolt
      8.5 N*m  { 85 kgf*cm, 74 in.*lbf }
      Lower bolt
      42 N*m  { 420 kgf*cm, 30 ft.*lbf }

    2. Install the shoulder anchor bolt and shoulder anchor cover.

      Torque:
      42 N*m  { 420 kgf*cm, 30 ft.*lbf }

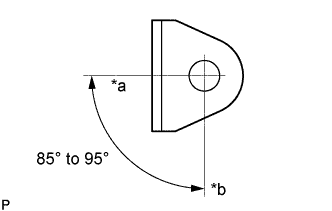

    3. A01KEWEE05
      Text in Illustration
      *a Out Side
      *b Front Side

      Install the floor anchor with the bolt, as shown in the illustration.

      Torque:
      42 N*m  { 420 kgf*cm, 30 ft.*lbf }

    4. Connect the pretensioner connector (w/ SRS airbag).

    5. Check the ELR lock.


      1. Check that the seat belt is locked when the seat belt is pulled out quickly with the seat belt installed with the vehicle.

  3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

    Tech Tips

    Use the same procedure as for the RH side.

  4. INSPECT SRS WARNING LIGHT (W/ SRS AIRBAG)
