BLOWER UNIT DISASSEMBLY


  1. REMOVE HEATER BLOWER MOTOR SUB-ASSEMBLY

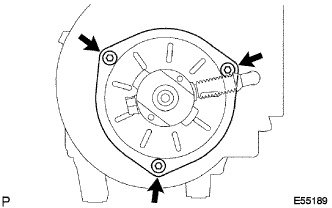

    1. A01KFFZ

      Remove the 3 screws and heater blower motor sub-assembly.

  2. REMOVE HEATER BLOWER FAN SUB-ASSEMBLY


    1. A01KIE5

      Remove the nut, washer and heater blower fan the heater blower motor.

  3. REMOVE HEATER AIR FILTER NO. 2
