OIL PRESSURE SWITCHING VALVE RELAY (w/ DPF) INSPECTION


  1. INSPECT OIL PRESSURE SWITCHING VALVE RELAY (2ST OIL PRESS)

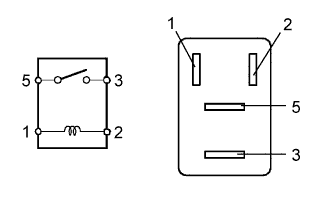

    A01KEJDE26

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.
