CYLINDER HEAD GASKET INSPECTION


  1. INSPECT CYLINDER HEAD SET BOLT

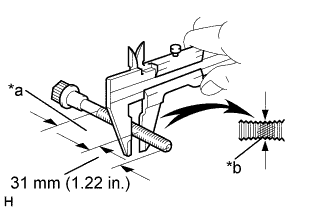

    1. A01KIPGE01
      Text in Illustration
      *a Measuring Point
      *b Compressed Thread

      Using vernier calipers, measure the minimum outer diameter of the compressed thread at the measuring point.

      Standard outer diameter
      11.800 - 12.000 mm (0.4646 - 0.4724 in.)
      Minimum outer diameter
      11.60 mm (0.4567 in.)

      If the outer diameter is less than minimum, replace the bolt.
