SHIFT LEVER ASSEMBLY REMOVAL


  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY


    1. A01CHF3

      Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

  2. REMOVE PARKING BRAKE HOLE COVER


    1. A01CISO

      Remove the 3 screws and parking brake hole cover.

  3. REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY


    1. A01CISL

      Disconnect the 2 clips and 4 claws, and then remove the shifting hole cover sub-assembly.

  4. REMOVE SHIFT LEVER BOOT COVER


    1. A01CI9G

      Remove the 3 clips and shift lever boot cover.

  5. SEPARATE SHIFT AND SELECT TRANSMISSION CONTROL CABLE


    1. A01CIWVE02
      Text in Illustration
      *1 Clip
      *2 Washer
      *3 Transmission Control Shift Cable
      *4 Transmission Control Select Cable

      Remove the clip and disconnect the transmission control shift cable from the shift lever assembly.

    2. Remove the clip and washer, and disconnect the transmission control select cable from the shift lever assembly.

    3. A01CIKB

      Remove the 2 clips and disconnect the shift and select transmission control cable from the shift lever retainer.

  6. REMOVE SHIFT LEVER ASSEMBLY

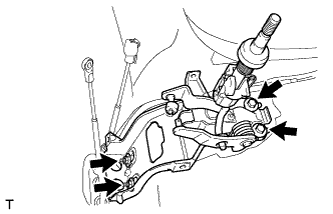

    1. A01CJAN

      Remove the 4 bolts and shift lever assembly.
