DIFFERENTIAL PRESSURE SENSOR INSPECTION


  1. INSPECT DIFFERENTIAL PRESSURE SENSOR ASSEMBLY


    1. Disconnect the 2 differential pressure sensor assembly hoses.

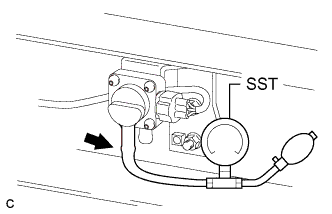

    2. A01CIL7E01

      Connect SST to the differential pressure sensor assembly as shown in the illustration.

      SST
      09992-00242

    3. Turn the ignition switch to ON.

    4. Using SST, apply pressure according to the value(s) in the table below.

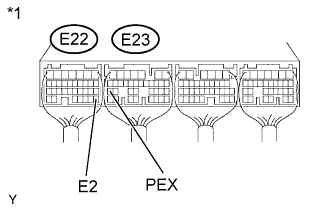

    5. A01CHKAE04
      Text in Illustration
      *1 ECM

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      E22-27 (PEX) - E23-28 (E2) 0 kPa 0.75 V

      20 kPa (0.2 kgf/cm2, 2.8 psi)

      		 1.53 V

      100 kPa (1.0 kgf/cm2, 14 psi)

      		 4.65 V

    6. Disconnect SST from the differential pressure sensor assembly.

    7. Connect the 2 differential pressure sensor assembly hoses.

      Tech Tips

      Be sure to connect the hoses correctly.
