CAN COMMUNICATION SYSTEM SYSTEM DIAGRAM

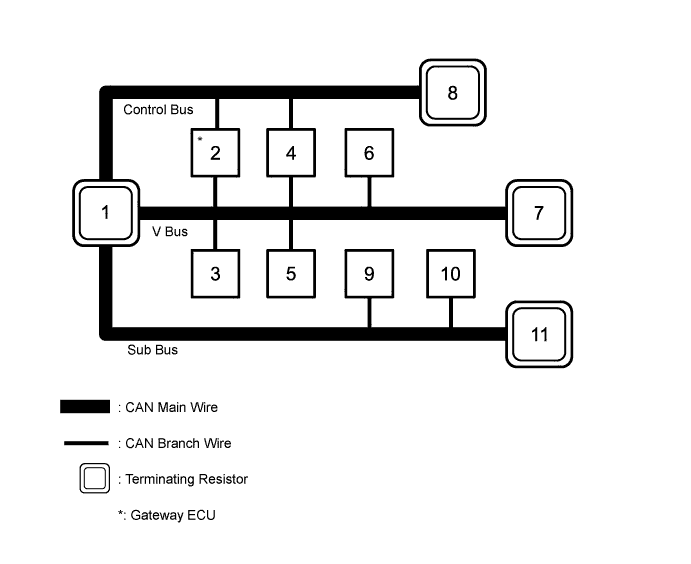

  1. SYSTEM DIAGRAM

    A01CIJAE01
    No. ECU/Sensor Name
    1 ECM
    2 Electric vehicle control ECU assembly
    3 Airbag ECU assembly
    4 Brake actuator assembly (skid control ECU)
    5 Tachograph assembly
    6 DLC3
    7 No. 5 junction connector
    8 Combination meter assembly
    9 Turbocharger sub-assembly
    10 EGR valve assembly
    11 No. 9 junction connector

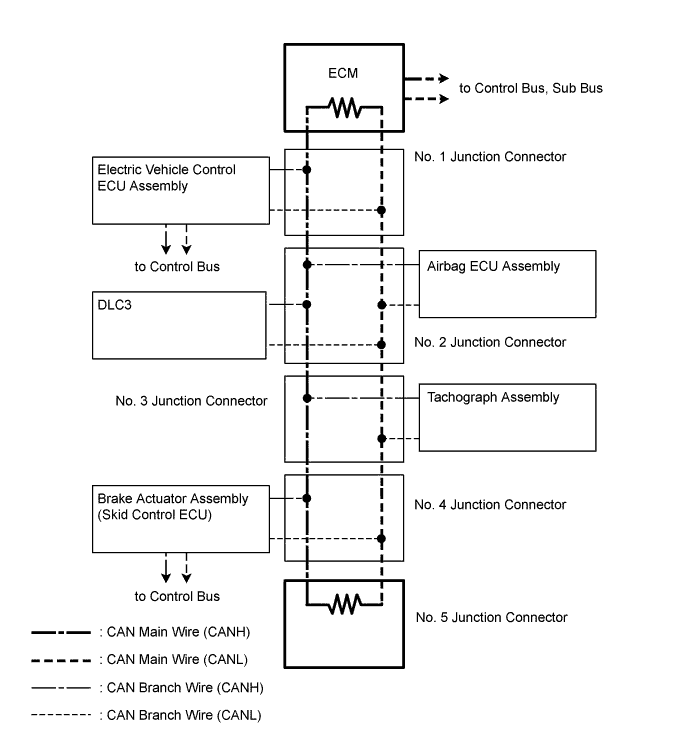

  2. V BUS

    A01CGVKE02

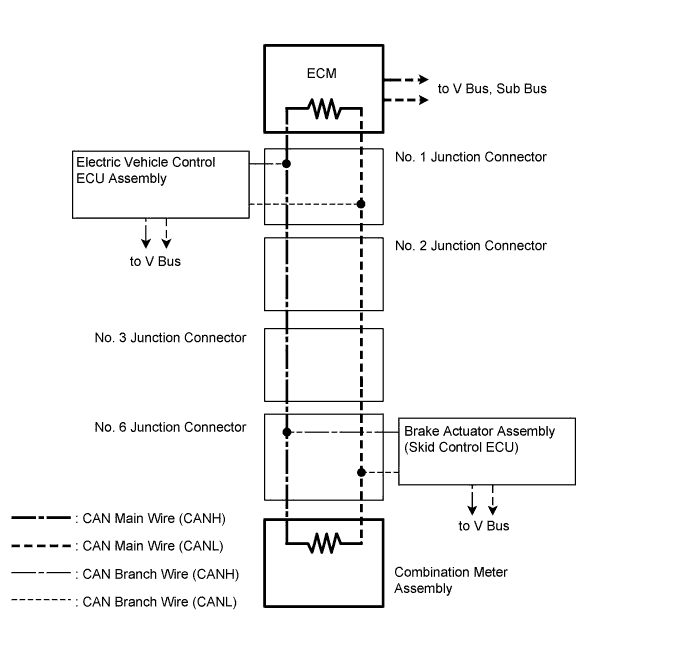

  3. CONTROL BUS

    A01CGQJE02

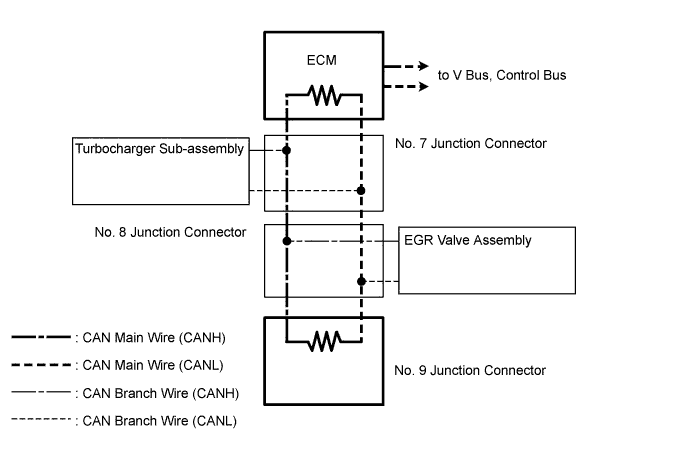

  4. SUB BUS

    A01CGSTE01
