POWER TAKE-OFF CONTROL UNIT REMOVAL


  1. RAISE REAR DECK


    1. A01CHK6E01
      Text in Illustration
      *1 Safety Support
      *2 Safety Bar

      When working with the rear deck raised, use precautions to prevent the rear deck from falling.

    2. Use wheel chocks to secure the vehicle.

    3. Set the safety bar.

    4. Support the safety bar with safety supports.

      Note

      Make sure that the bezel is securely supported by the safety bar and that the safety bar does not move.

  2. REMOVE CONTROL UNIT RELAY ASSEMBLY

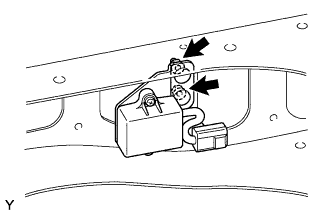

    1. A01CIGO

      Disconnect the connector.

    2. Remove the 2 nuts and control unit relay assembly.
