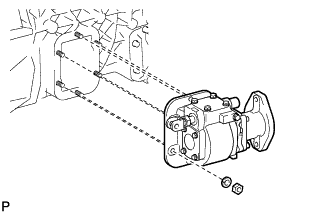

POWER TAKE-OFF ASSEMBLY (for Power Take Off Manual Lever Type) REMOVAL

DRAIN MANUAL TRANSMISSION OIL

1. Remove the filler plug and O-ring.

2. Remove the drain plug and O-ring, and then drain the manual transmission oil.

3. Install a new O-ring and the drain plug.

   Torque:

   39 N*m  { 400 kgf*cm, 29 ft.*lbf }
