VALVE CONTROL LEVER REMOVAL


  1. REMOVE INSTRUMENT PANEL ASSEMBLY

    Click here

  2. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

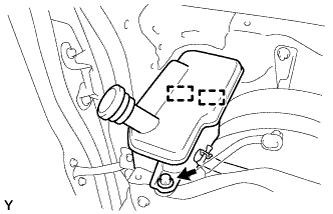

    1. A01CHSN

      Remove the bolt.

    2. Detach the 2 guides and remove the brake master cylinder reservoir assembly.

  3. REMOVE PUSH PULL CABLE ASSEMBLY

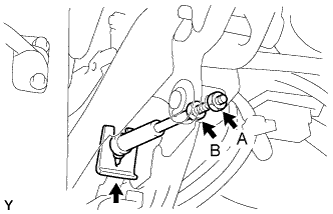

    1. A01CIRFE01

      Remove the nut labeled A in the illustration.

      Note

      Do not loosen the nut labeled B as it is held in place with adhesive.

    2. Remove the clip and push pull cable assembly.

  4. REMOVE VALVE CONTROL LEVER WITH BRACKET


    1. A01CHVDE01

      Remove the 3 bolts and valve control lever assembly with bracket.

      Tech Tips

      Use a universal socket wrench (09011-5C120) for the bolt labeled A in the illustration.
