POWER TAKE-OFF CLUTCH SWITCH INSTALLATION


  1. INSTALL POWER TAKE-OFF CLUTCH SWITCH ASSEMBLY


    1. Install the power take-off clutch switch assembly with the nut.

      Torque:
      24 N*m  { 245 kgf*cm, 18 ft.*lbf }

    2. Fold back the floor carpet.

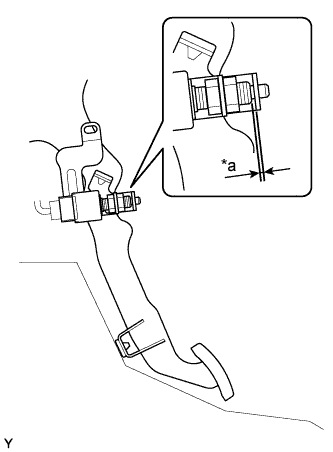

    3. A01CIFAE01
      Text in Illustration
      *a Distance A

      Depress the clutch pedal to the floor and measure distance A shown in the illustration.

      Standard distance
      1.0 to 3.0 mm (0.04 to 0.12 in.)

    4. Connect the connector.
