AIRBAG SYSTEM TERMINALS OF ECU

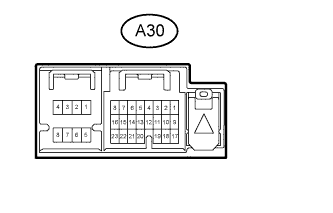

  1. AIRBAG ECU ASSEMBLY

    A01CH73E03
    Terminal No. Terminal Symbol Destination
    A30 - 3 D- Horn button assembly (driver side squib)
    A30 - 4 D+ Horn button assembly (driver side squib)
    A30 - 7 PD- Front seat outer belt assembly LH (front pretensioner squib LH)
    A30 - 8 PD+ Front seat outer belt assembly LH (front pretensioner squib LH)
    A30 - 9 IG2 SRS-IG(12V) fuse
    A30 - 10 CANL DLC3
    A30 - 12 +SR No. 2 airbag sensor assembly
    A30 - 13 -SR No. 2 airbag sensor assembly
    A30 - 18 CANH DLC3
    A30 - 19 E1 Ground
    A30 - 21 LA Combination meter assembly (SRS warning light)
