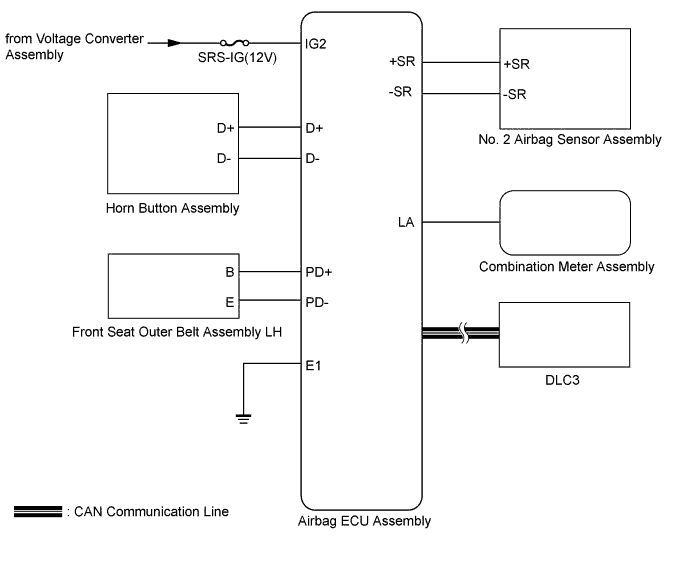

AIRBAG SYSTEM SYSTEM DIAGRAM
| Transmitting ECU (Transmitter) | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Airbag ECU assembly | DLC3 | Diagnosis signal (DTC) | CAN |
| Transmitting ECU (Transmitter) | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Airbag ECU assembly | DLC3 | Diagnosis signal (DTC) | CAN |
