VACUUM WARNING BUZZER INSTALLATION


  1. INSTALL VACUUM WARNING BUZZER

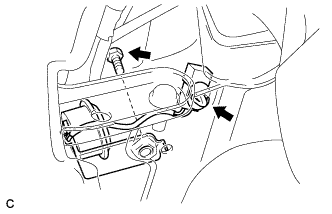

    1. A01CH5R

      Install the vacuum warning buzzer to the pedal support bracket with the bolt.

      Torque:
      18 N*m  { 179 kgf*cm, 13 ft.*lbf }

    2. Install the harness clamp to the pedal support bracket and connect the vacuum warning buzzer connector.

  2. INSTALL COMBINATION METER


    1. Connect the connector to the combination meter.

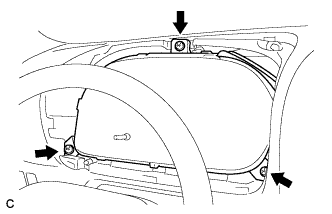

    2. A01CGWA

      Install the combination meter with the 3 screws.

  3. INSTALL INSTRUMENT CLUSTER FINISH PANEL NO.1

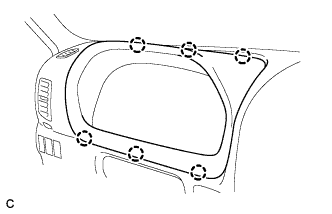

    1. A01CJ8YE01

      Engage the 6 claws to install the instrument cluster finish panel.
