ES START TIMING SWITCH ASSEMBLY INSPECTION


  1. INSPECT ES START TIMING SWITCH ASSEMBLY

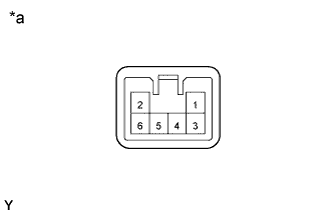

    1. A01CIBAE01
      Text in Illustration
      *a

      Component without harness connected

      (ES Start Timing Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      2 (MSW+) - 5 (MSW2) Pushed Below 1 Ω
      Not pushed 10 kΩ or higher
      2 (MSW+) - 6 (MSW1) Pushed 10 kΩ or higher
      Not pushed Below 1 Ω
      2 (MSW+) - 3 (TSWS) Lever switch pushed to SLOW and held Below 1 Ω
      Lever switch pushed to FAST and held 10 kΩ or higher
      2 (MSW+) - 4 (TSWF) Lever switch pushed to SLOW and held 10 kΩ or higher
      Lever switch pushed to FAST and held Below 1 Ω

      If the result is not as specified, replace the ES start timing switch assembly.
