EASY AND SMOOTH START SYSTEM, Diagnostic DTC:P0617/45

DTC Code DTC Name
P0617/45 Starter Relay Circuit High

DESCRIPTION

DTC No. Detection Condition Trouble Area
P0617/45 When the power supply voltage is 16 V or more and 32 V or less, the ignition switch is ON and the engine speed is 1000 rpm or more, the starter signal is detected to be ON for 5 seconds or more continuously.

  • Starting system

  • Harness or connector

  • Electric vehicle control ECU assembly

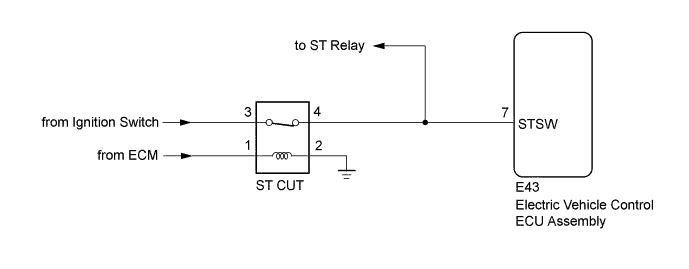

WIRING DIAGRAM

A01CI59E01

INSPECTION PROCEDURE

Note


  • After replacing the electric vehicle control ECU assembly, perform clutch pedal stroke sensor assembly release position calibration Click here.

  • DTCs stored in the electric vehicle control ECU assembly are not cleared even after the system returns to a normal condition, so clear the DTCs after performing troubleshooting Click here.

PROCEDURE


  1. CHECK ELECTRIC VEHICLE CONTROL ECU ASSEMBLY (STSW TERMINAL)

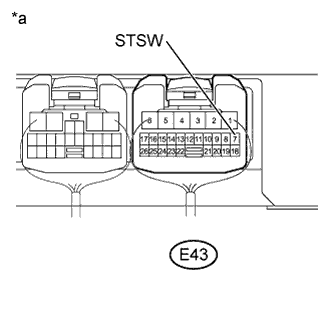

    1. A01CHH1E05
      Text in Illustration
      *a

      Component with harness connected

      (to Electric Vehicle Control ECU Assembly)

      Turn the ignition switch to ON.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      E43-7 (STSW) - Body ground Ignition switch ON (starter motor not operating) Below 1 V
      Cranking (starter motor operating) 10 to 16 V

    NG

    CHECK HARNESS AND CONNECTOR (STSW TERMINAL) Click here

    OK

  2. CLEAR DTC


    1. Clear the DTCs Click here.


    NEXT

  3. CHECK FOR DTC


    1. Check for DTCs Click here.

      Result
      Result Proceed to
      DTC is not output A
      DTC is output B

    B

    REPLACE ELECTRIC VEHICLE CONTROL ECU ASSEMBLY Click here

    A

    USE SIMULATION METHOD TO CHECK Click here

  4. CHECK HARNESS AND CONNECTOR (STSW TERMINAL)


    1. Turn the ignition switch off.

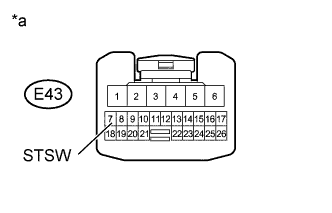

    2. A01CIQ1E01
      Text in Illustration
      *a

      Front view of wire harness connector

      (Electric Vehicle Control ECU Assembly)

      Disconnect the electric vehicle control ECU assembly connector.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      E43-7 (STSW) - Body ground Ignition switch ON (starter motor not operating) Below 1 V
      Cranking (starter motor operating) 10 to 16 V

    NG

    CHECK HARNESS AND CONNECTOR (ELECTRIC VEHICLE CONTROL ECU ASSEMBLY - BODY GROUND) Click here

    OK

    REPLACE ELECTRIC VEHICLE CONTROL ECU ASSEMBLY Click here

  5. CHECK HARNESS AND CONNECTOR (ELECTRIC VEHICLE CONTROL ECU ASSEMBLY - BODY GROUND)


    1. Remove the ST CUT relay from the engine room relay block.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      E43-7 (STSW) - Body ground Ignition switch ON Below 1 V

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    GO TO STARTING SYSTEM Click here
