TIRE AND WHEEL SYSTEM INSPECTION


  1. INSPECT TIRE


    1. Check the tires for wear and proper inflation pressure.

      Cold Tire Inflation Pressure
      Tire Size

      Front

      kPa (kgf/cm2, psi)

      Rear

      kPa (kgf/cm2, psi)
      205/75R17.5 750 (7.50, 109) 750 (7.50, 109)

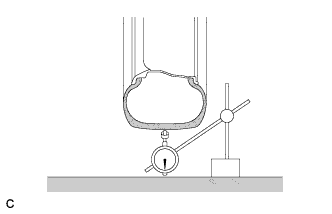

    2. A01CGSQ

      Using a dial indicator, check the runout of the tires.

      Tire runout
      3.0 mm (0.118 in.) or less

  2. ROTATE TIRES

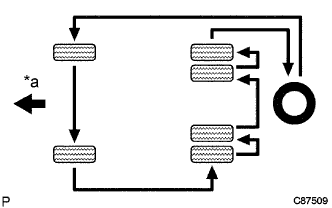

    1. A01CHPTE01
      Text in Illustration
      *a Front of the Vehicle

      Rotate the tires as shown in the illustration.

      Torque:
      515 N*m  { 5252 kgf*cm, 380 ft.*lbf }

  3. INSPECT WHEEL BALANCE

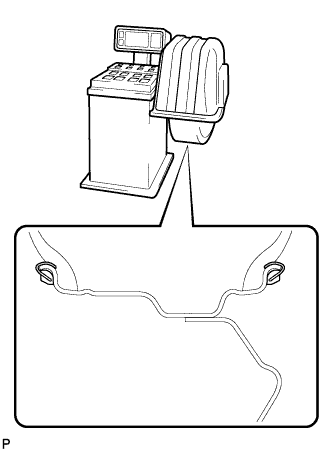

    1. A01CJ7S

      Check and adjust the off-the-car balance.

      Maximum imbalance after adjustment
      25.0 g (0.881 lb.)

      Tech Tips

      If necessary, check and adjust the on-the-car balance.

  4. INSPECT FRONT AXLE HUB BEARING LOOSENESS

    See Pub. No. RM931E, page 30-2.
