REAR LEAF SPRING REASSEMBLY


  1. INSTALL REAR LEAF SPRING BUSHING

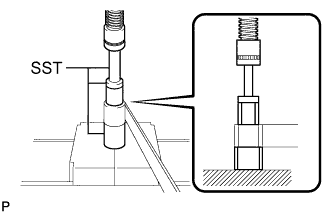

    1. A01CGT6E01

      Using SST and a press, press in a new rear leaf spring bushing.

      SST
      09309-60010
      09950-60010   ( 09951-00300 )
      09950-70010   ( 09951-07100 )

  2. REASSEMBLE REAR SPRING ASSEMBLY


    1. A01CGYA

      Secure the leaf springs with C-clamps and install the bolt and nut.

      Torque:
      97 N*m  { 990 kgf*cm, 75 ft.*lbf }

      Tech Tips

      Refer to the components page for the location of the parts Click here.

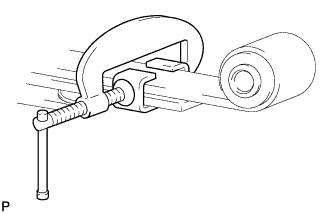

    2. A01CIX9

      Using C-clamps, caulk the 2 rear No. 1 spring clips.
