REAR BUMPER COMPONENTS
ILLUSTRATION

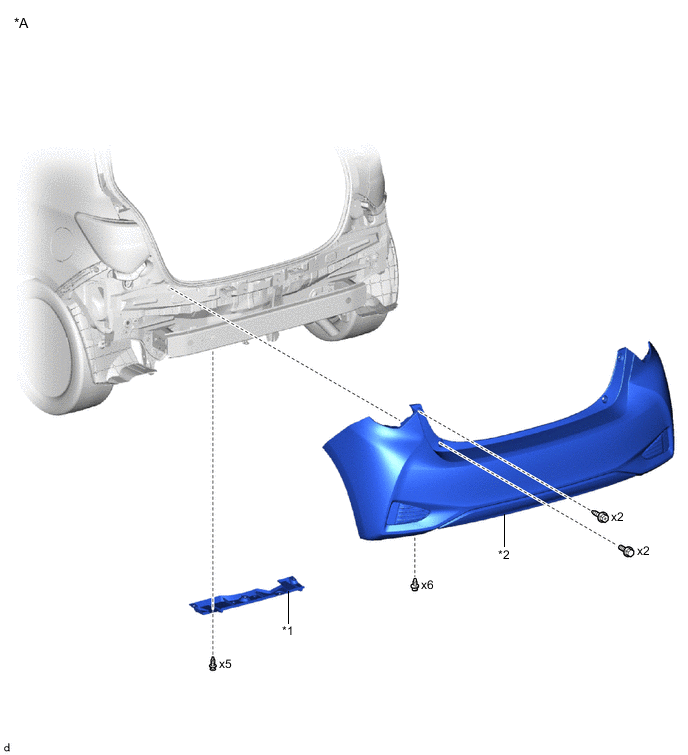

| *A | except GRMN | - | - |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | REAR BUMPER ASSEMBLY |
ILLUSTRATION

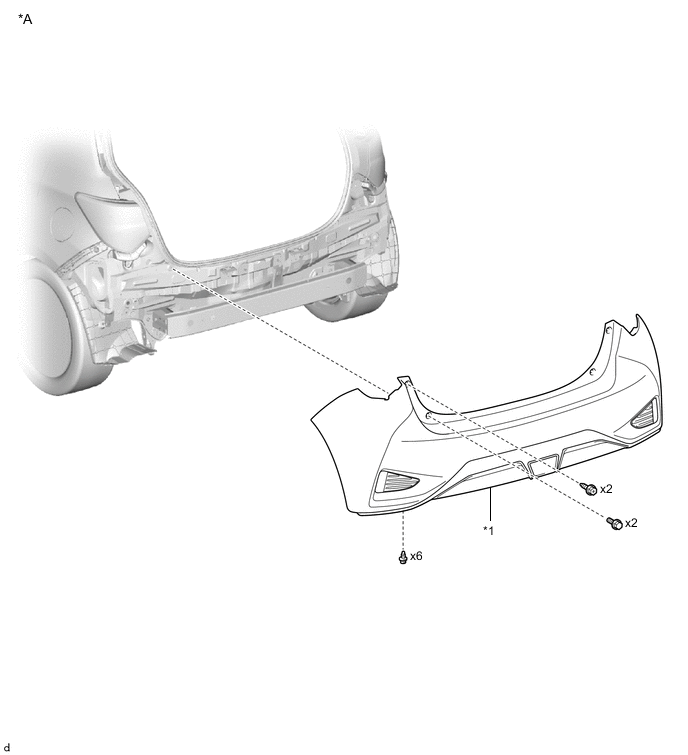

| *A | for GRMN | - | - |
| *1 | REAR BUMPER ASSEMBLY | - | - |
ILLUSTRATION

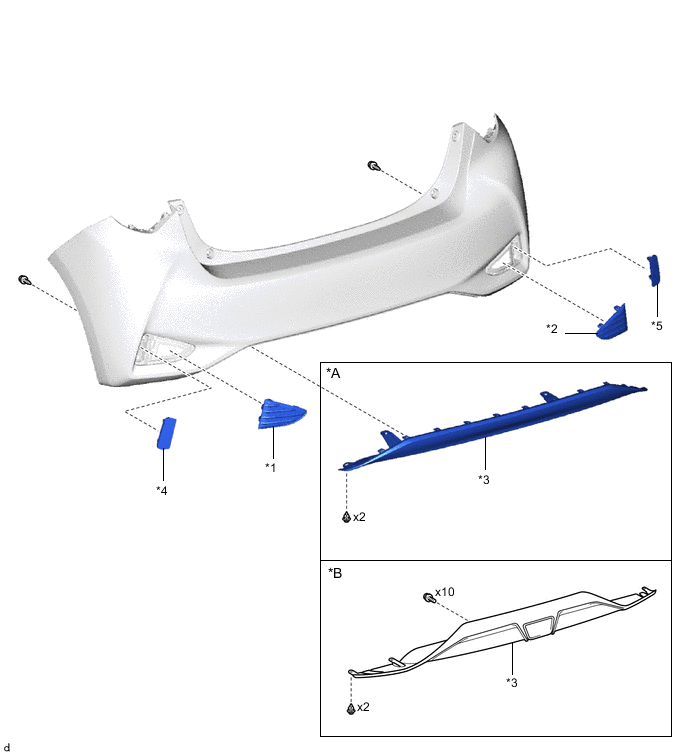

| *A | except GRMN | *B | for GRMN |
| *1 | REAR BUMPER EXTENSION LH | *2 | REAR BUMPER EXTENSION RH |
| *3 | REAR BUMPER GUARD | *4 | REFLEX REFLECTOR ASSEMBLY LH |
| *5 | REFLEX REFLECTOR ASSEMBLY RH | - | - |
ILLUSTRATION

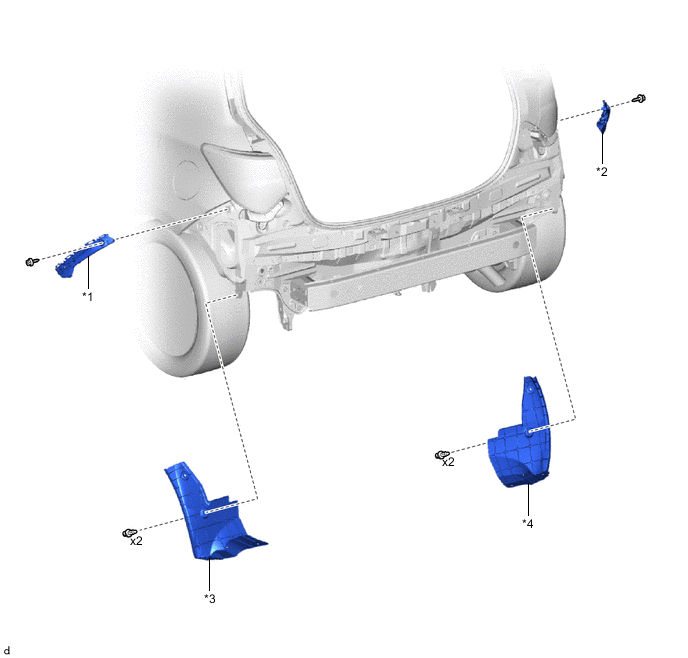

| *1 | REAR BUMPER SIDE RETAINER LH | *2 | REAR BUMPER SIDE RETAINER RH |
| *3 | REAR BUMPER SIDE SEAL LH | *4 | REAR BUMPER SIDE SEAL RH |
ILLUSTRATION

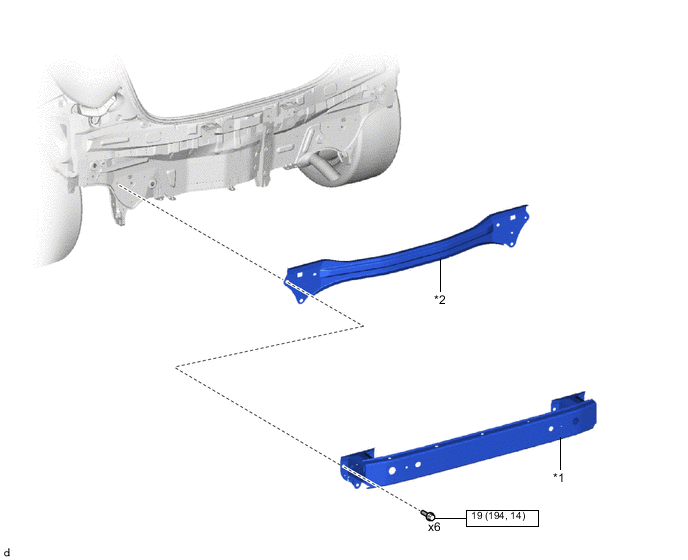

| *1 | NO. 1 REAR BUMPER REINFORCEMENT | *2 | NO. 2 REAR BUMPER REINFORCEMENT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
