REAR BUMPER COMPONENTS

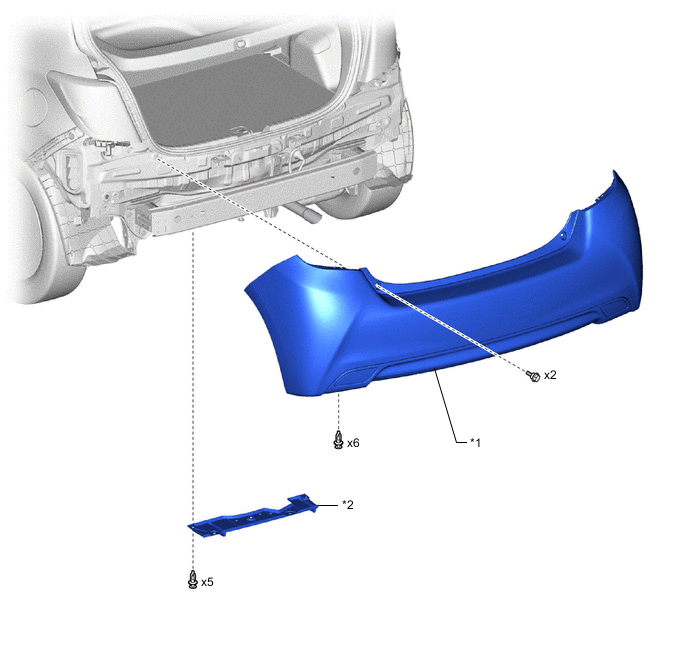

ILLUSTRATION
| *1 | REAR BUMPER ASSEMBLY |
| *2 | NO. 1 FLOOR UNDER COVER |
ILLUSTRATION
| *1 | BACK-UP LIGHT ASSEMBLY |
| *2 | REAR FOG LIGHT ASSEMBLY |
| *3 | REAR BUMPER GUARD |
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
| *1 | REAR BUMPER ASSEMBLY |
| *2 | NO. 1 FLOOR UNDER COVER |
ILLUSTRATION
| *1 | BACK-UP LIGHT ASSEMBLY |
| *2 | REAR FOG LIGHT ASSEMBLY |
| *3 | REAR BUMPER GUARD |
ILLUSTRATION
ILLUSTRATION
