HEADLIGHT ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for both the RH and LH sides.

  • The procedure described below is for the LH side.

PROCEDURE


  1. REMOVE NO. 1 HEADLIGHT BACK COVER (w/o Projector Headlight)


    1. A004B5I

      Remove the No. 1 headlight back cover.

  2. REMOVE NO. 1 HEADLIGHT BULB (w/o Projector Headlight)

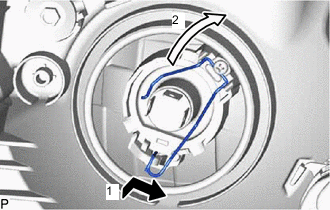

    1. A0047T0E02

      Release the set spring in the direction indicated by the arrow in the order shown in the illustration.

    2. A0049QW

      Remove the No. 1 headlight bulb.

      Note

      Do not touch the No. 1 headlight bulb glass with your fingers.

  3. REMOVE NO. 1 HEADLIGHT BULB (w/ Projector Headlight)

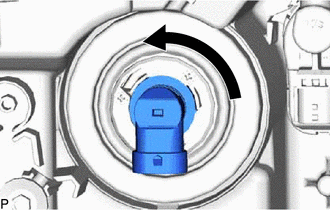

    1. A004BBN

      Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration, and remove it.

      Note

      Do not touch the No. 1 headlight bulb glass with your fingers.

  4. REMOVE NO. 1 HEADLIGHT BACK COVER (w/ Projector Headlight)


    1. A0048K1

      Remove the No. 1 headlight back cover.

  5. REMOVE CLEARANCE LIGHT BULB (w/o Projector Headlight)

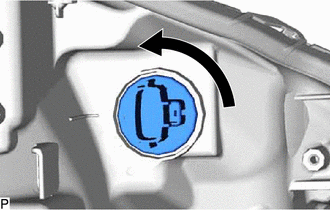

    1. A00494E

      Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

    2. Remove the clearance light bulb from the clearance light socket.

  6. REMOVE CLEARANCE LIGHT BULB (w/ Projector Headlight)

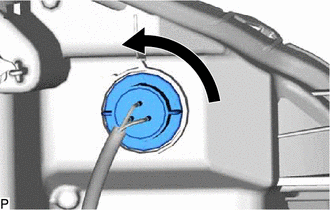

    1. A00476B

      except LED Clearance Light:


      1. Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

      2. Remove the clearance light bulb from the clearance light socket.

  7. REMOVE FRONT TURN SIGNAL LIGHT BULB (w/o Projector Headlight)

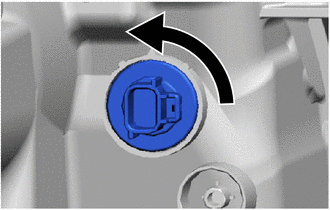

    1. A004ASF

      Turn the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

    2. Remove the front turn signal light bulb from the front turn signal light socket.

  8. REMOVE FRONT TURN SIGNAL LIGHT BULB (w/ Projector Headlight)

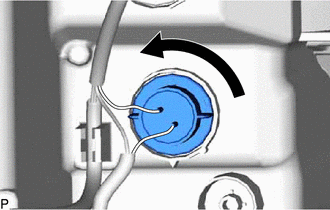

    1. A004AA8

      Turn the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

    2. Remove the front turn signal light bulb from the front turn signal light socket.
