HEADLIGHT ASSEMBLY DISASSEMBLY

PROCEDURE


  1. REMOVE NO. 1 HEADLIGHT BACK COVER (w/o Projector Headlight)

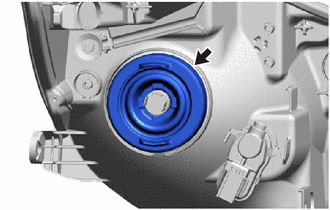

    1. A01VFC0

      Remove the No. 1 headlight back cover.

  2. REMOVE NO. 1 HEADLIGHT BULB (w/o Projector Headlight)

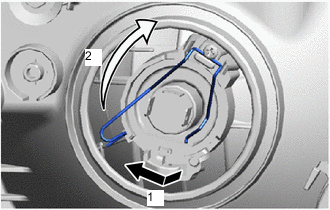

    1. A01VLYIE02

      Release the set spring in the direction indicated by the arrow in the order shown in the illustration.

    2. A01VJPJ

      Remove the No. 1 headlight bulb.

      Note

      Do not touch the No. 1 headlight bulb glass with your fingers.

  3. REMOVE NO. 1 HEADLIGHT BULB (w/ Projector Headlight)

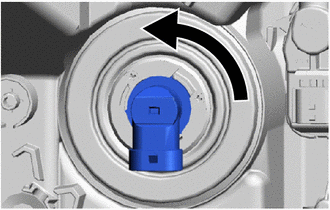

    1. A01VEYB

      Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration, and remove it.

      Note

      Do not touch the No. 1 headlight bulb glass with your fingers.

  4. REMOVE NO. 1 HEADLIGHT BACK COVER (w/ Projector Headlight)


    1. A01VFHU

      Remove the No. 1 headlight back cover.

  5. REMOVE CLEARANCE LIGHT BULB (w/o Projector Headlight)

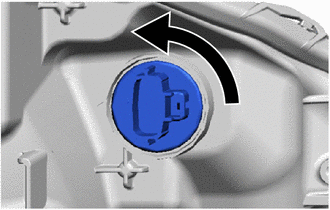

    1. A01VIY2

      Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

    2. Remove the clearance light bulb from the clearance light socket.

  6. REMOVE CLEARANCE LIGHT BULB (w/ Projector Headlight)

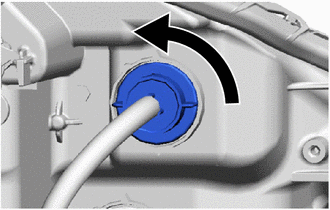

    1. A01VE0U

      Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

  7. REMOVE FRONT TURN SIGNAL LIGHT BULB (w/o Projector Headlight)

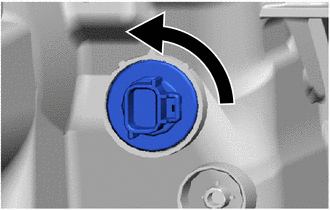

    1. A01VLK6

      Turn the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

    2. Remove the front turn signal light bulb from the front turn signal light socket.

  8. REMOVE FRONT TURN SIGNAL LIGHT BULB (w/ Projector Headlight)

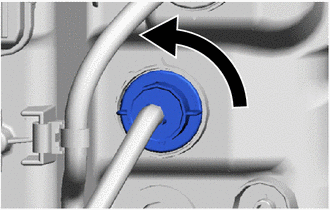

    1. A01VK0N

      Turn the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to remove them.
