HEADLIGHT ASSEMBLY DISASSEMBLY

PROCEDURE

1. REMOVE NO. 1 HEADLIGHT BULB




   1.

      Remove the socket cover.

   2.

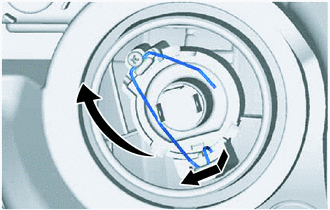

      Release the set spring lock as shown in the illustration.

   3.

      Remove the No. 1 headlight bulb.

      Note

      Do not touch the bulb glass with your fingers.

2. REMOVE CLEARANCE LIGHT BULB




   1.

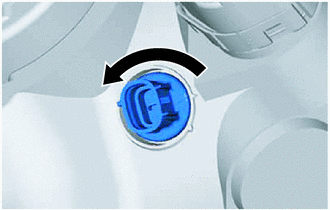

      Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

   2. Remove the clearance light bulb from the clearance light socket.

3. REMOVE FRONT TURN SIGNAL LIGHT BULB




   1.

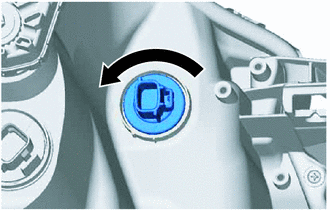

      Turn the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to remove them.

   2. Remove the front turn signal light bulb from the front turn signal light socket.

4. REMOVE HEADLIGHT LEVELING MOTOR



   1.

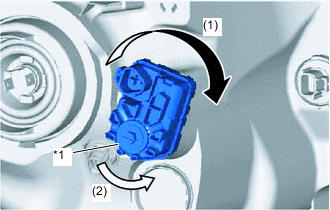

      Text in Illustration

      *1	Aiming Screw

      Turn the headlight leveling motor in the direction indicated by the arrow (1) shown in the illustration to release it.

      Tech Tips

      When removing the headlight leveling motor of the headlight assembly RH, turn the headlight leveling motor in the opposite direction indicated by the arrow (1) shown in the illustration.

   2. Turn the aiming screw of the headlight leveling motor in the direction indicated by the arrow (2) shown in the illustration to disengage the shaft.

   3. Remove the headlight leveling motor.

5. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING




   1. Remove the headlight leveling motor base packing.

      Note

      After the headlight leveling motor base packing is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.
