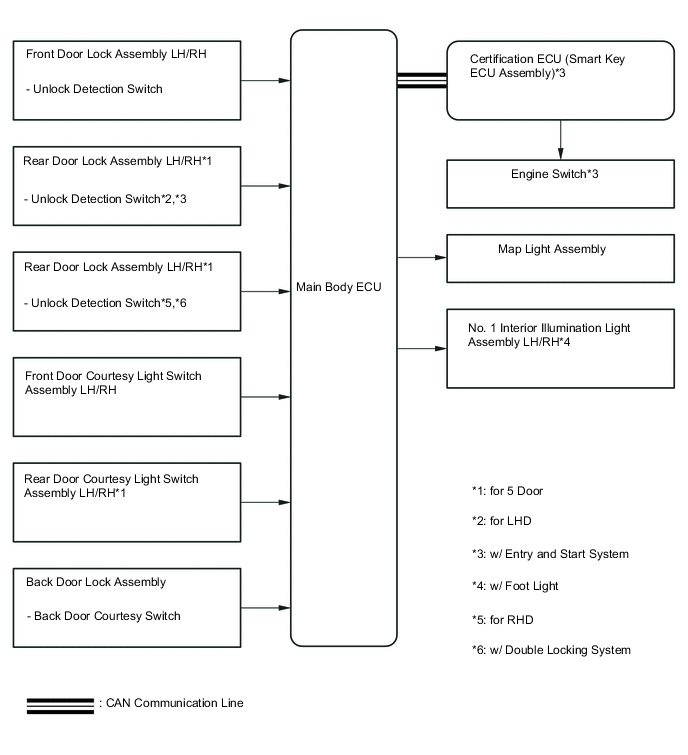

LIGHTING SYSTEM SYSTEM DIAGRAM
-
ILLUMINATED ENTRY SYSTEM
Communication Table Sender Receiver Signal Line Certification ECU (Smart Key ECU Assembly)*1 Main Body ECU Electrical key signal CAN *1: w/ Entry and Start System
ILLUMINATED ENTRY SYSTEM
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Certification ECU (Smart Key ECU Assembly)*1 | Main Body ECU | Electrical key signal | CAN |
*1: w/ Entry and Start System
