TIRE AND WHEEL SYSTEM INSPECTION

PROCEDURE


  1. INSPECT TIRES (for TMC Made)


    1. Check the tires for wear and proper inflation pressure.

      Cold Tire Inflation Pressure
      Tire Size

      Front

      kPa (kgf/cm2, psi)

      Rear

      kPa (kgf/cm2, psi)
      175/65R14 82T 220 (2.2, 32) 220 (2.2, 32)
      175/70R14 84S 250 (2.5, 36) 240 (2.4, 35)
      175/65R15 84H 230 (2.3, 33) 220 (2.2, 32)
      185/60R15 84H 220 (2.2, 32) 220 (2.2, 32)

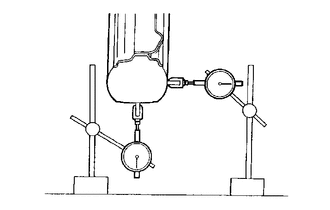

    2. A01VF4L

      Using a dial indicator, check the tire runout.

      Tire runout
      1.4 mm (0.0551 in.) or less (Vertical)
      2.0 mm (0.0787 in.) or less (Lateral)

  2. INSPECT TIRES (for TMMF Made)


    1. Check the tires for wear and proper inflation pressure.

      Cold Tire Inflation Pressure
      Tire Size

      Front

      kPa (kgf/cm2, psi)

      Rear

      kPa (kgf/cm2, psi)
      175/65R14 82T 220 (2.2, 32) 220 (2.2, 32)
      175/70R14 84S 250 (2.5, 36) 240 (2.4, 35)
      175/65R15 84H 230 (2.3, 33) 220 (2.2, 32)

      175/65R15 84H

      Eco Pressure

      		 250 (2.5, 36) 240 (2.4, 35)
      185/60R15 84H 220 (2.2, 32) 220 (2.2, 32)
      195/50R16 84V 220 (2.2, 32) 200 (2.0, 29)
    2. A01VF4L

      Using a dial indicator, check the tire runout.

      Tire runout
      1.4 mm (0.0551 in.) or less (Vertical)
      2.0 mm (0.0787 in.) or less (Lateral)

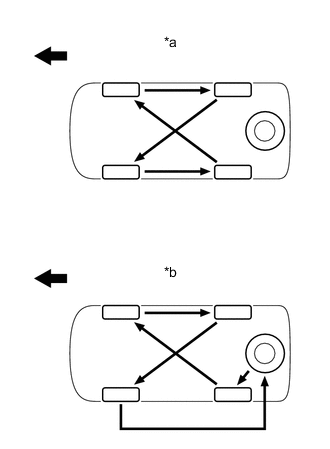

  3. ROTATE TIRES

    A01VM8ZE02
    Text in Illustration
    *a Compact Spare Tire
    *b Full Size Spare Tire
    A01VL3H Front

    Tech Tips

    Rotate the tires, as shown in the illustration.

  4. INSPECT WHEEL BALANCE


    1. Check and perform off-car balancing.

    2. If required, perform on-car balancing.

      Imbalance after adjustment
      8.0 g (0.0176 lb) or less

  5. INSPECT FRONT AXLE HUB BEARING

    Click here

  6. INSPECT REAR AXLE HUB BEARING

    Click here
