SPEED LIMITER SYSTEM PARTS LOCATION

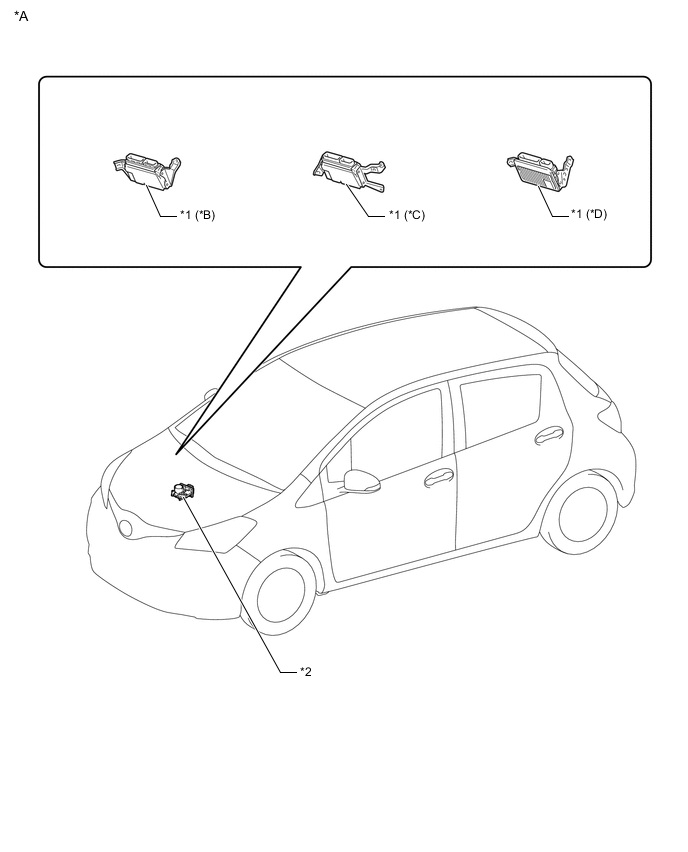

ILLUSTRATION
| *A | for LHD | *B | for 1KR-FE |
| *C | for 1ND-TV | *D | for 2NR-FKE |
| *1 | ECM | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |

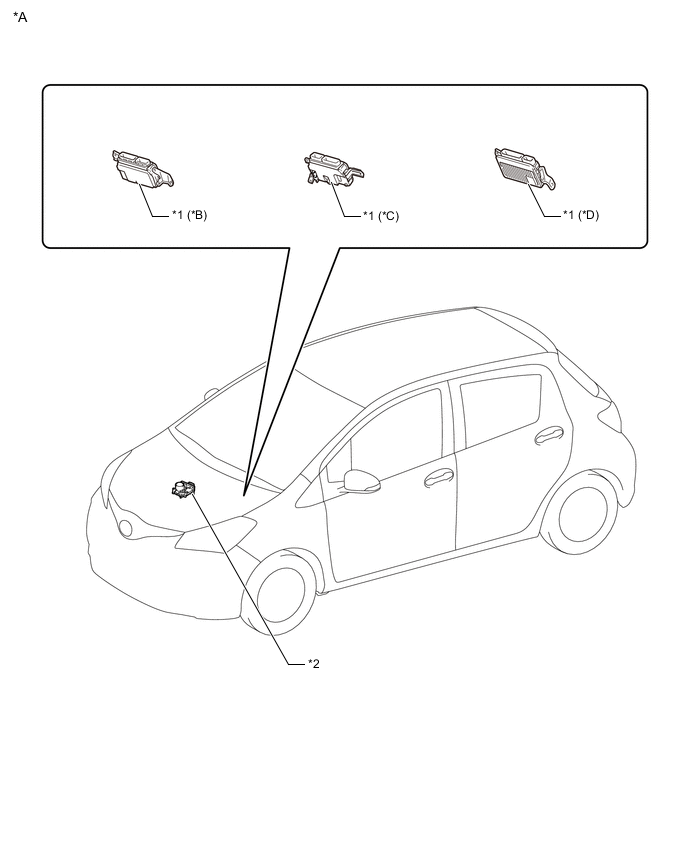

ILLUSTRATION
| *A | for LHD | *B | for 1KR-FE |
| *C | for 1ND-TV | *D | for 2NR-FKE |
| *1 | ECM | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |

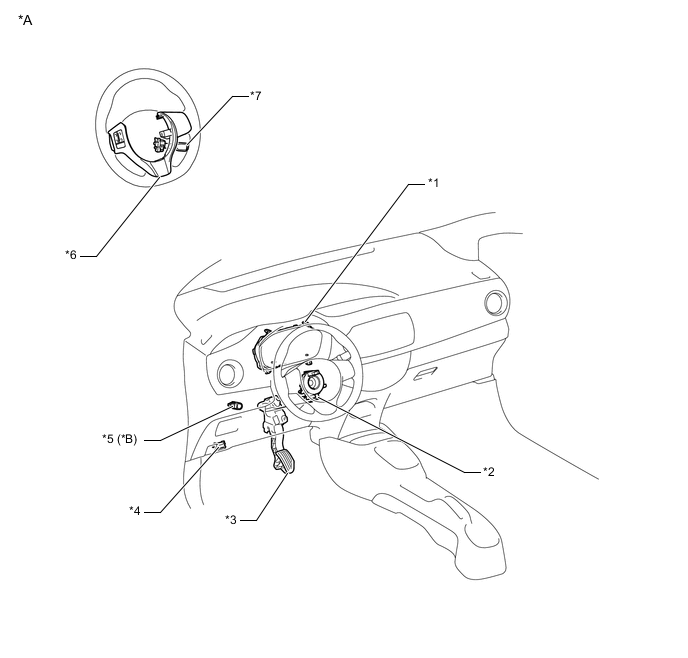

ILLUSTRATION
| *A | for LHD | *B | for Manual Transaxle |
| *1 | COMBINATION METER ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | DLC3 |
| *5 | NO. 2 CLUTCH START SWITCH ASSEMBLY | *6 | STEERING PAD SWITCH ASSEMBLY - SPEED LIMITER MAIN SWITCH |
| *7 | CRUISE CONTROL MAIN SWITCH | - | - |

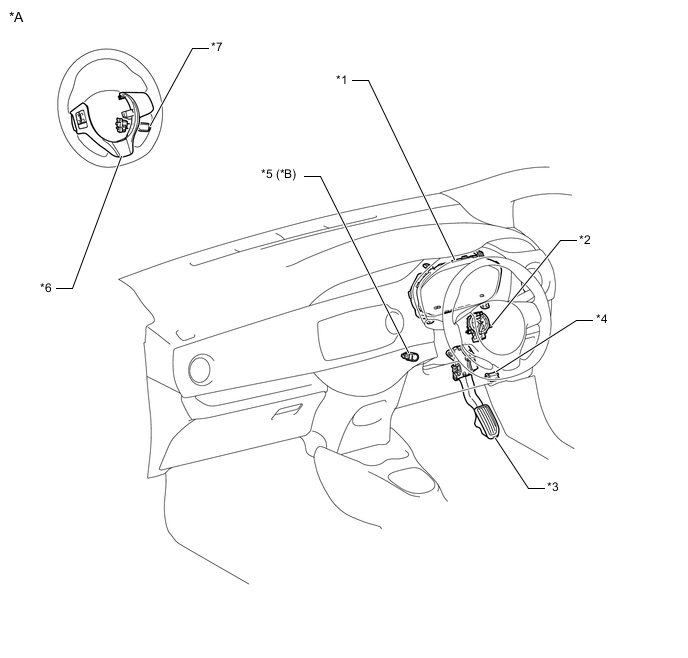

ILLUSTRATION
| *A | for RHD | *B | for Manual Transaxle |
| *1 | COMBINATION METER ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | DLC3 |
| *5 | NO. 2 CLUTCH START SWITCH ASSEMBLY | *6 | STEERING PAD SWITCH ASSEMBLY - SPEED LIMITER MAIN SWITCH |
| *7 | CRUISE CONTROL MAIN SWITCH | - | - |
