CRUISE CONTROL SYSTEM(for Diesel) TC and CG Terminal Circuit

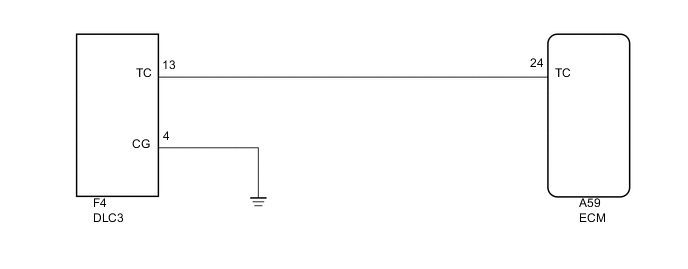

WIRING DIAGRAM

A01VHEKE06

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (DLC3 - ECM AND BODY GROUND)


    1. Disconnect the A59 ECM connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      F4-13 (TC) - A59-24 (TC) Always Below 1 Ω
      F4-4 (CG) - Body ground
      F4-13 (TC) - Body ground Always 10 kΩ or higher

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
