CRUISE CONTROL SYSTEM(for Diesel) SYSTEM DIAGRAM

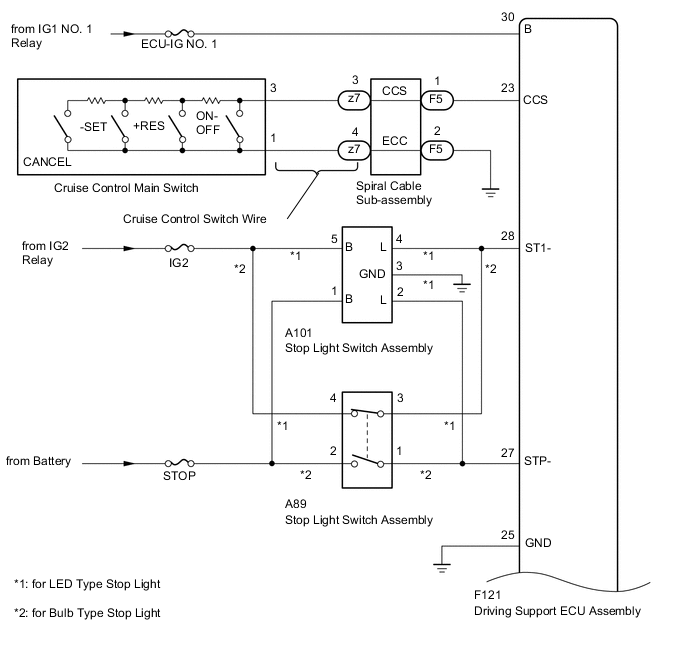

A01VGC9E02

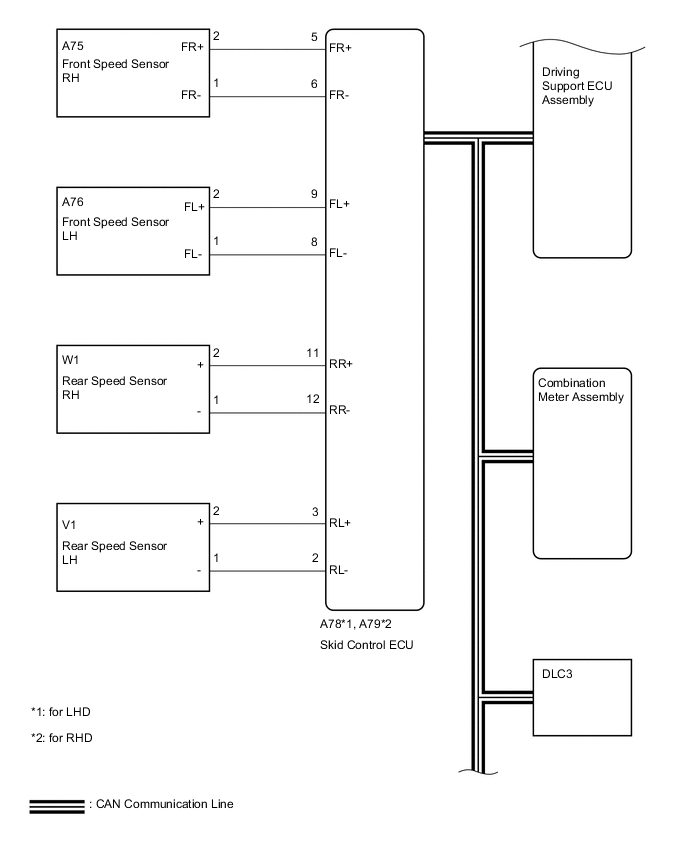

A01VDQIE04

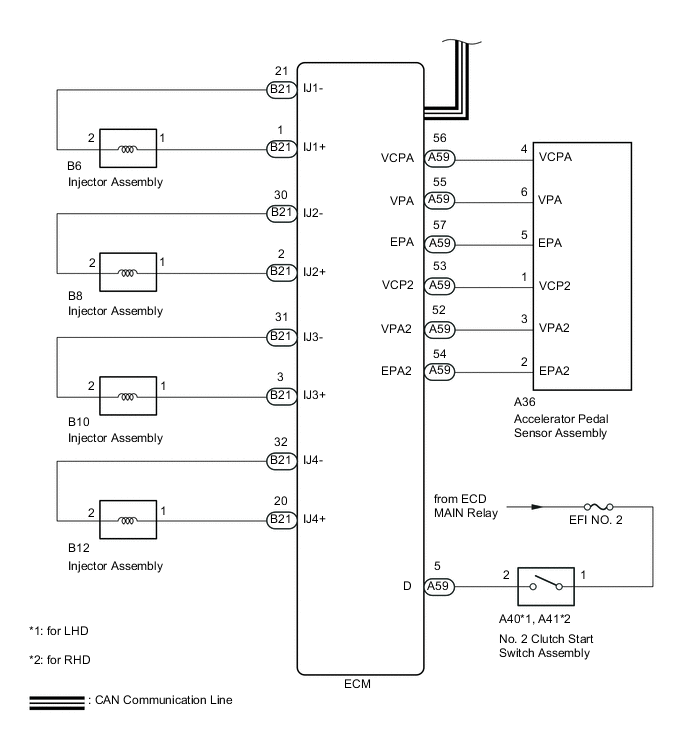

A01VKKLE04
Communication Table
Sender Receiver Signal Line
Driving Support ECU Assembly Combination Meter Assembly Cruise control indicator light signals CAN
Skid Control ECU Driving Support ECU Assembly

  • Vehicle stability control system operation signal*1

  • Vehicle speed signal

 CAN
ECM Driving Support ECU Assembly

  • Clutch switch signal

  • Engine speed signal

  • Engine torque information

 CAN
Driving Support ECU Assembly ECM Cruise control demand torque signal CAN
