SPEED LIMITER SYSTEM OPERATION CHECK


  1. CHECK SPEED LIMITER INDICATOR AND MULTI-INFORMATION DISPLAY


    1. Turn the ignition switch to ON.

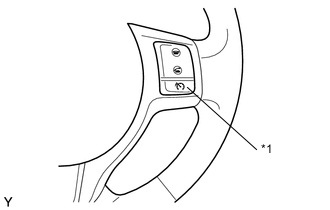

    2. A01VLYNE02
      Text in Illustration
      *1 Speed limiter main switch

      Check that the speed limiter indicator light turns on when the speed limiter main switch is turned on and that the speed limiter indicator light turns off when the speed limiter main switch is turned off.

    3. Check that the status of the speed limiter appears on the multi-information display.
