DIFFERENTIAL PRESSURE SENSOR INSTALLATION

PROCEDURE


  1. INSTALL DIFFERENTIAL PRESSURE SENSOR

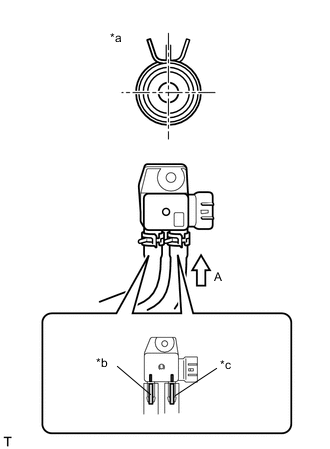

    1. A01VH9VE02
      Text in Illustration
      *a View A
      *b Marked Yellow
      *c Marked Pink

      Connect the 2 vacuum transmitting hoses to the differential pressure sensor.

    2. Install the differential pressure sensor with the bolt.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }

    3. Connect the differential pressure sensor connector.

  2. INSTALL NO. 1 ENGINE COVER

    Click here

  3. PERFORM DIFFERENTIAL PRESSURE SENSOR LEARNING


    1. Start the engine and wait until the engine coolant temperature reaches 75°C (167°F) or more (A).

    2. Turn the ignition switch off and wait for 30 seconds or more (B).

    3. Repeat the above procedures (A) and (B) 3 times.

      Tech Tips


      • Procedures (A) and (B) must be repeated 3 times to complete the differential pressure sensor learning process.

      • If the differential pressure sensor learning is incomplete, DTC P244A may be stored.
