EGR VALVE REMOVAL

PROCEDURE


  1. REMOVE INTAKE MANIFOLD

    Click here

  2. REMOVE EGR VALVE ASSEMBLY


    1. A01VHY3

      Disconnect the EGR valve assembly connector.

    2. A01VLFK

      Slide the hose clip and disconnect the No. 2 water by-pass hose from the EGR valve assembly.

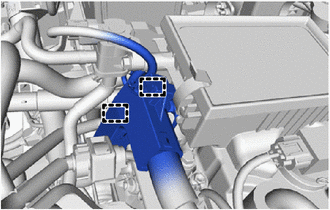

    3. A01VDZ0

      Disengage the 2 clamps to disconnect the wire harness from the wire harness clamp bracket.

    4. A01VK3H

      Remove the bolt and wire harness clamp bracket from the cylinder head cover sub-assembly.

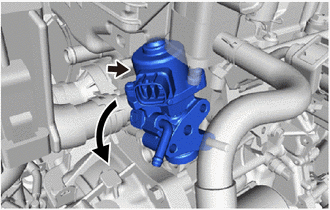

    5. A01VHNZ

      Rotate the EGR valve assembly to avoid the fuel delivery pipe sub-assembly and cylinder head cover sub-assembly, and remove the EGR valve assembly from the cylinder head sub-assembly.

  3. REMOVE EGR VALVE GASKET


    1. A01VGNR

      Remove the EGR valve gasket from the cylinder head sub-assembly.
