FRONT CRANKSHAFT OIL SEAL REMOVAL

PROCEDURE


  1. REMOVE FRONT WHEEL RH

  2. REMOVE ENGINE UNDER COVER RH

    Click here

  3. REMOVE FAN AND GENERATOR V BELT

    Click here

  4. REMOVE OIL FILTER BRACKET

    Click here

  5. REMOVE CRANKSHAFT PULLEY

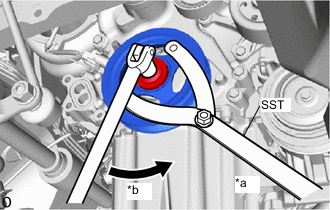

    1. A01VIV9E02
      Text in Illustration
      *a Hold
      *b Turn

      Using SST, hold the crankshaft pulley in place and loosen the crankshaft pulley set bolt.

      SST
      09960-10010   ( 09962-01000, 09963-01000 )

      Tech Tips

      Loosen the crankshaft pulley set bolt so that only the first 2 or 3 threads remain in the crankshaft.

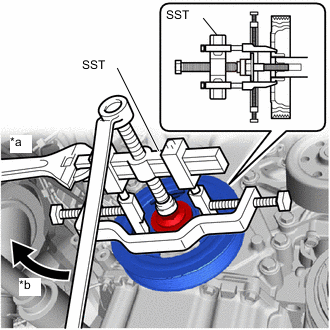

    2. A01VG9FE02
      Text in Illustration
      *a Hold
      *b Turn

      Using SST, remove the crankshaft pulley set bolt and crankshaft pulley from the crankshaft.

      SST
      09950-40011   ( 09951-04010, 09953-04020, 09952-04010, 09954-04010, 09955-04011, 09957-04010 )

      Note


      • Apply lubricant to the threads and end of SST (Center Bolt 150).

      • Do not drop the crankshaft pulley or SST.

  6. REMOVE TIMING CHAIN COVER OIL SEAL

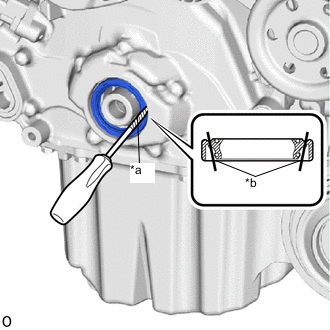

    1. A01VJT3E02
      Text in Illustration
      *a Protective Tape
      *b Cut Position

      Using a knife, cut off the lip of the timing chain cover oil seal.

    2. Using a screwdriver with its tip wrapped in protective tape, pry out the timing chain cover oil seal from the timing chain cover sub-assembly.

      Note

      After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
